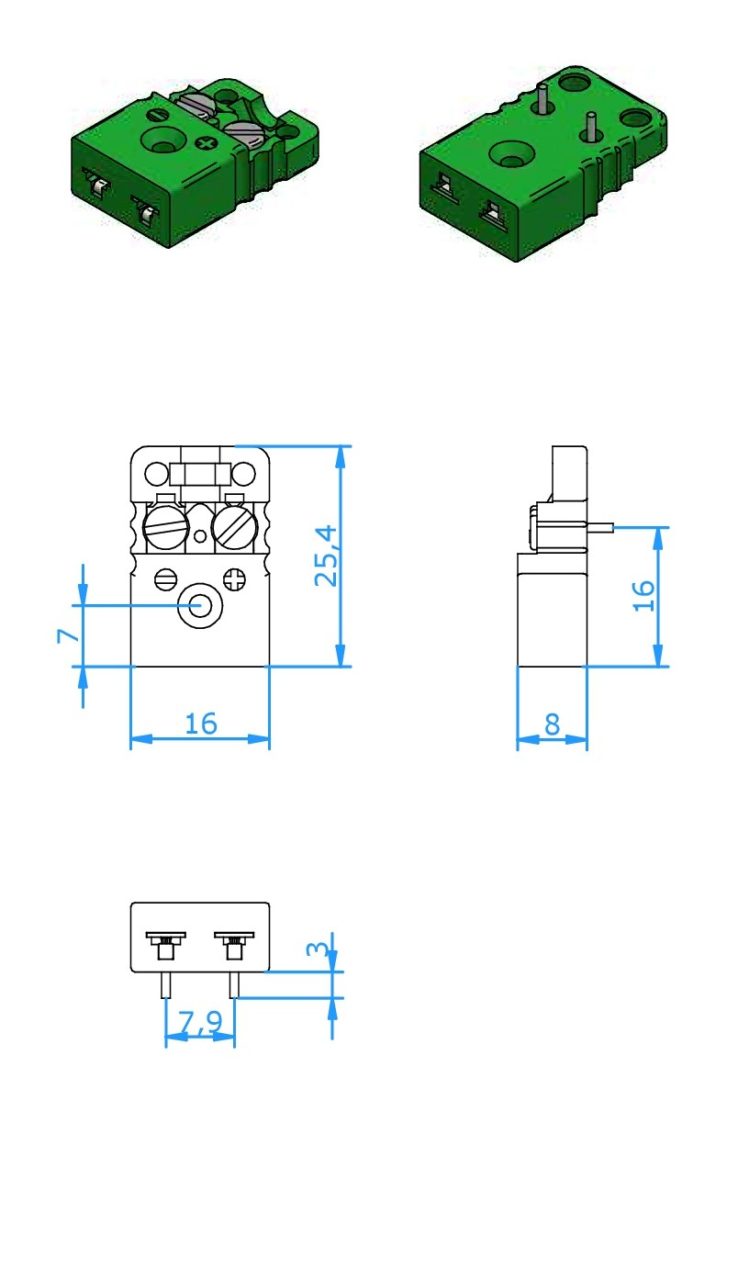

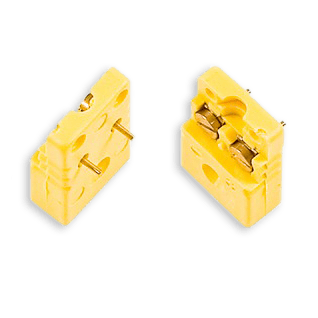

PCB Connector Miniature Flat Mounting (CMJ-XXPF)

Use:

Miniature Jack/Socket for thermocouple and RTD circuits. Designed for direct soldering onto printed circuit boards. This version is suitable for flat mounting other versions available..

Mechanical design:

• Housing of fibreglass-filled plastic.
• Contacts of original thermocouple materials and spring-loaded sockets for reliable contact.
• Reverse polarity protection by different contact pin widths.
• One-piece housing withstands great stresses.

Temperature load:

• Max. +220 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S, B
• on request: Type C

Resistance themometer:

• for RTD use type U (Cu/Cu).

Colour designations:

• All international colour designations are available:
  DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.

Material-Code:

Discount on large quantities on request
