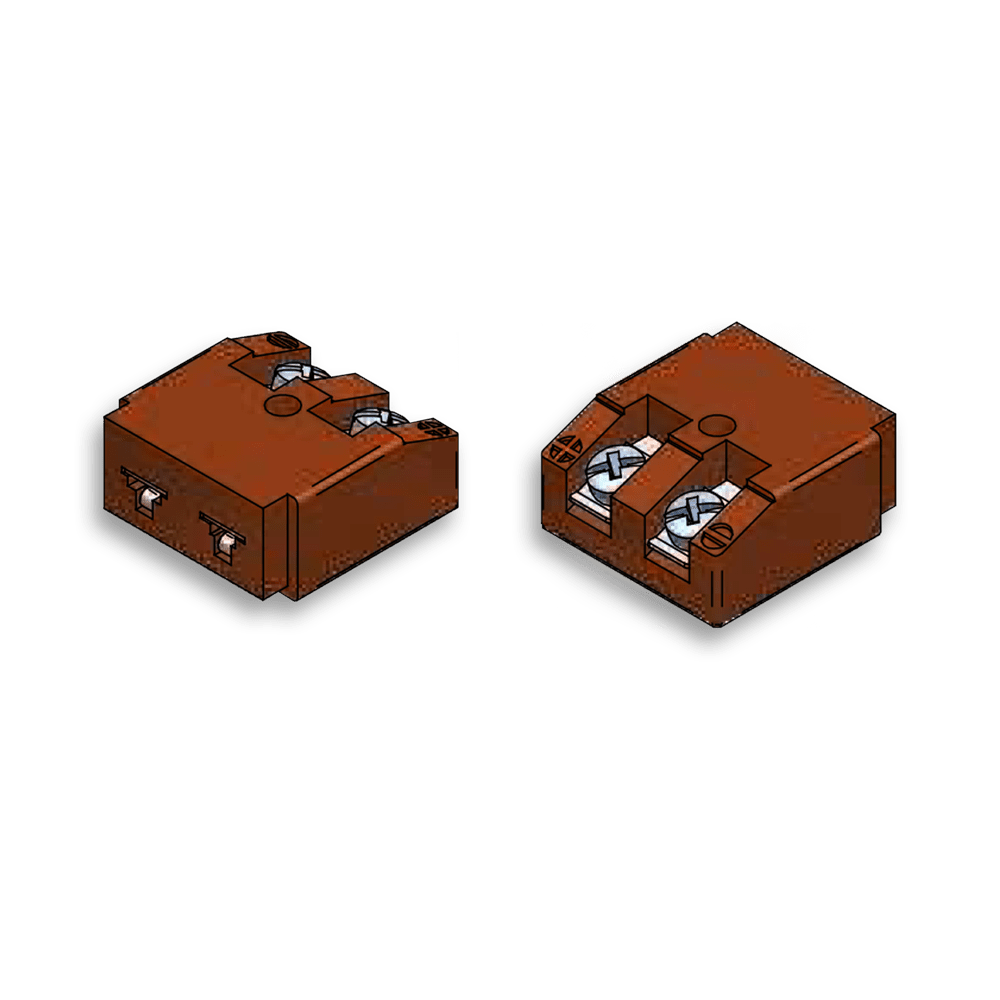

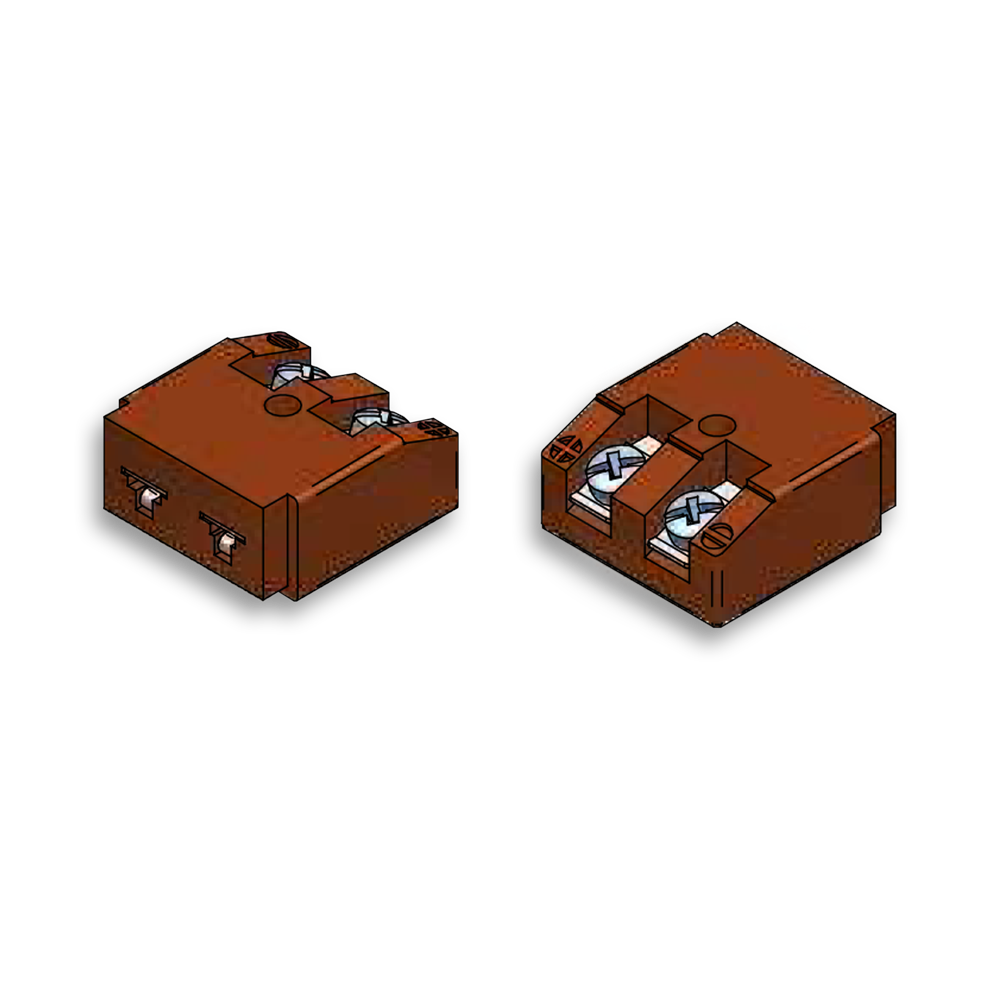

High Temperature Panel Miniature Insert (PMIH)

Use:
Panel insert for thermocouple and RTD circuits.

Mechanical design:

• Thermoset body with original thermocouple material and springloaded inserts.
• Polarized pins.
• Molded barriers prevent short circuit.
• Rugged one body design.
• Moulded barriers prevent short-circuits.
• Polarity indication next to connection screws.

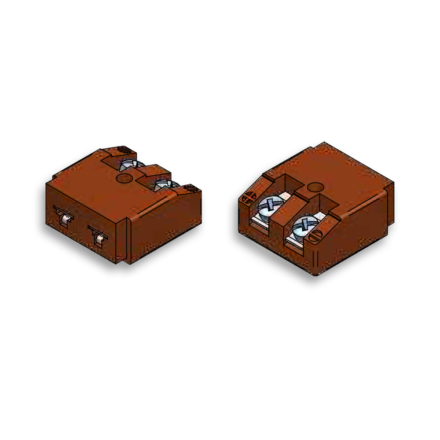

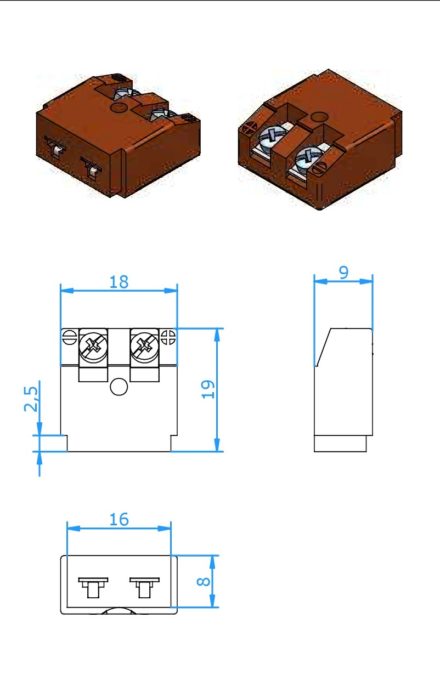

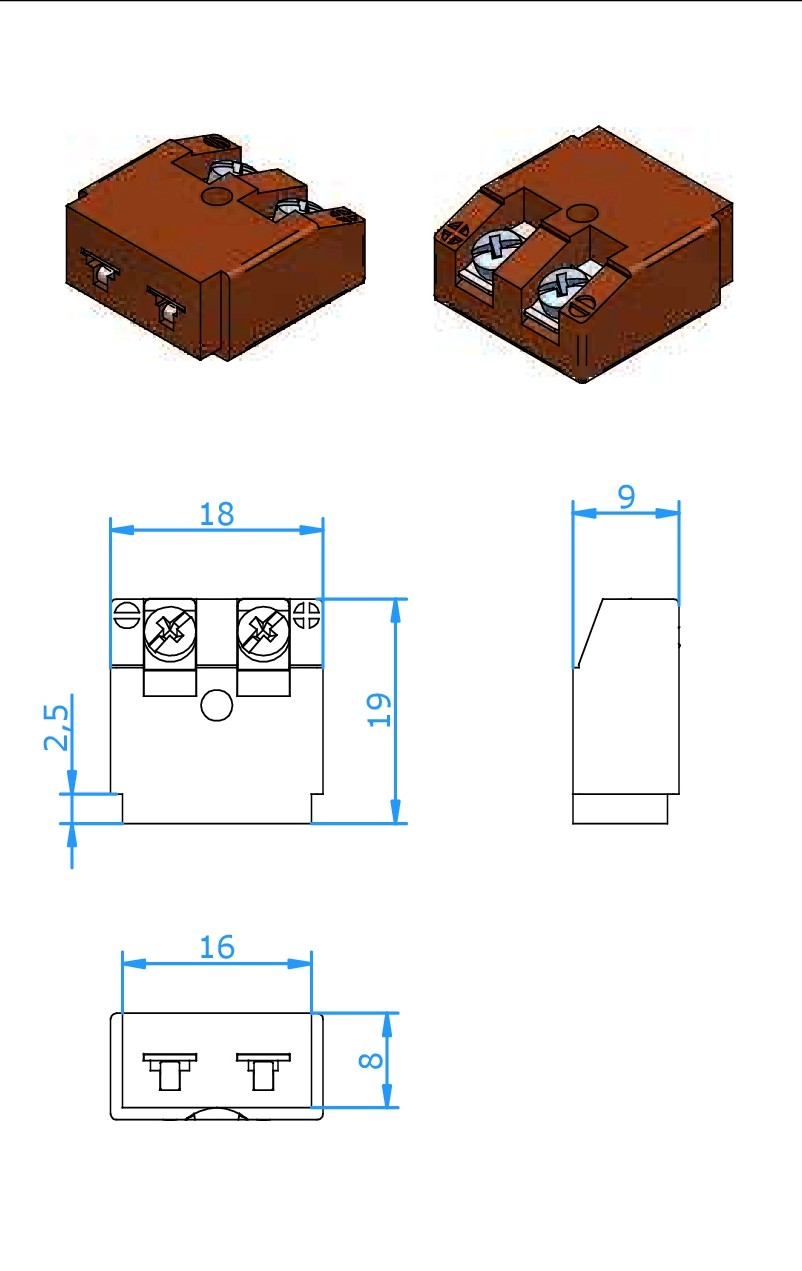

Panel cut-out:

• 8,1 x 16,1 mm; panel thickness : 2,5 mm

Conductor diameter:

• Accepts wires up to 0,6 mm.

Temperature load:

• Max. +350 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S, B
• on request: Type C

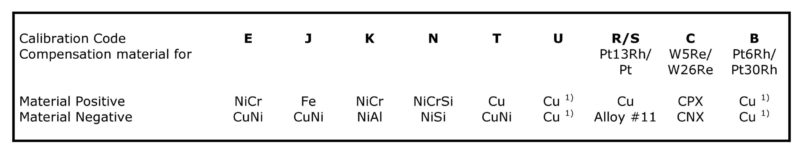

Colour designations:

• Body color brown. Calibration indication printed on body

Discount on large quantities on request
