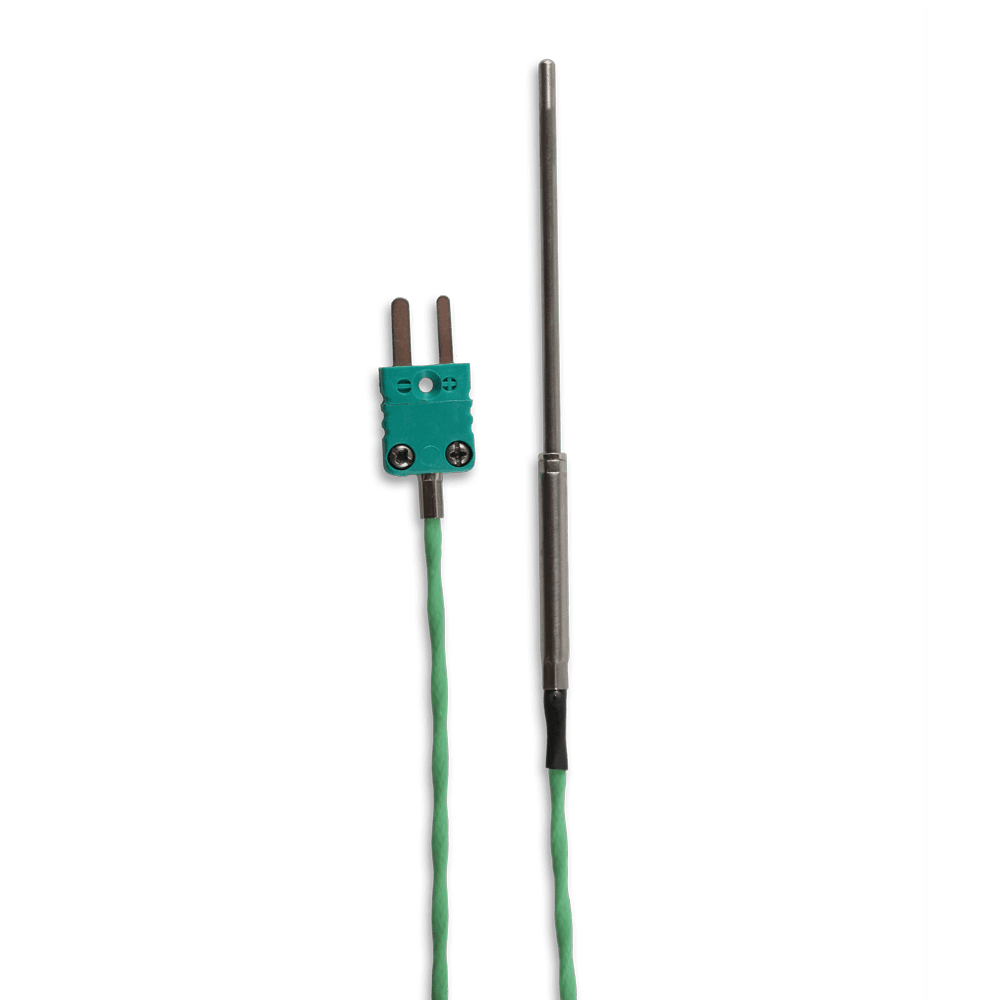

Exhaust gas sensor sheathing thermocouple

MST-20345 – sheathing thermocouple Type “K”, NiCr- Ni, Cl. 1

The sheathing thermocouple from Therma is perfect for reliable and fail-safe temperature measurement in the exhaust gas system. It excels with its simple structure. By selecting double-walled sheathing material made of Nimonic75, this thermocouple is well prepared for corrosion influences and vibrations along with extremely high temperatures. Furthermore, assembly with a compression-type fitting lets you decide the installation length onsite.

The benefits:

• Fast response time
• High temperature resistance (up to 1,200 °C)
• individual installation lengths

Technical data:

• Sheathed thermocouples NiCr-Ni, Type “K”
• Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
• Sensor diameter: 3.0 mm
• Sheathing material: Nimonic75, double-walled
• Measuring point: hot junction insulated
• Sensor length: 100 mm or 200 mm
• Adapter sleeve: VA, 5.0 x 40 mm
• Line length: 1,000 mm, 2,000 mm or 3,000 mm
• Line type: FEP-Teflon with Cu shield
• Conductor: Strand, 2x 0.22 mm², AWG24F
• Temperature range of the line: up to 205 °C in continuous duty, 230 °C peak
• Connection: free ends, mini-plug, mini-plug self-locking, analogue 0–5 V (THK)
• Operating temperature: up to 1,200 °C

Discount on large quantities on request
