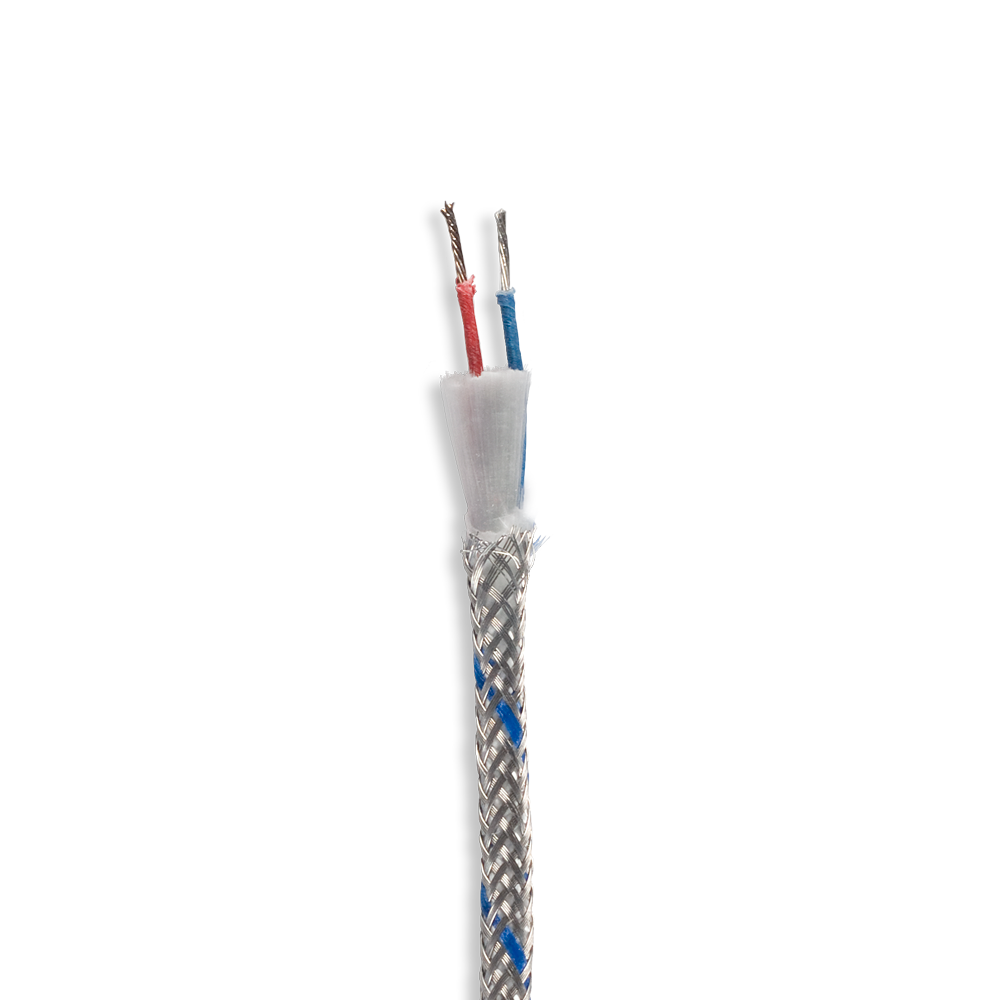

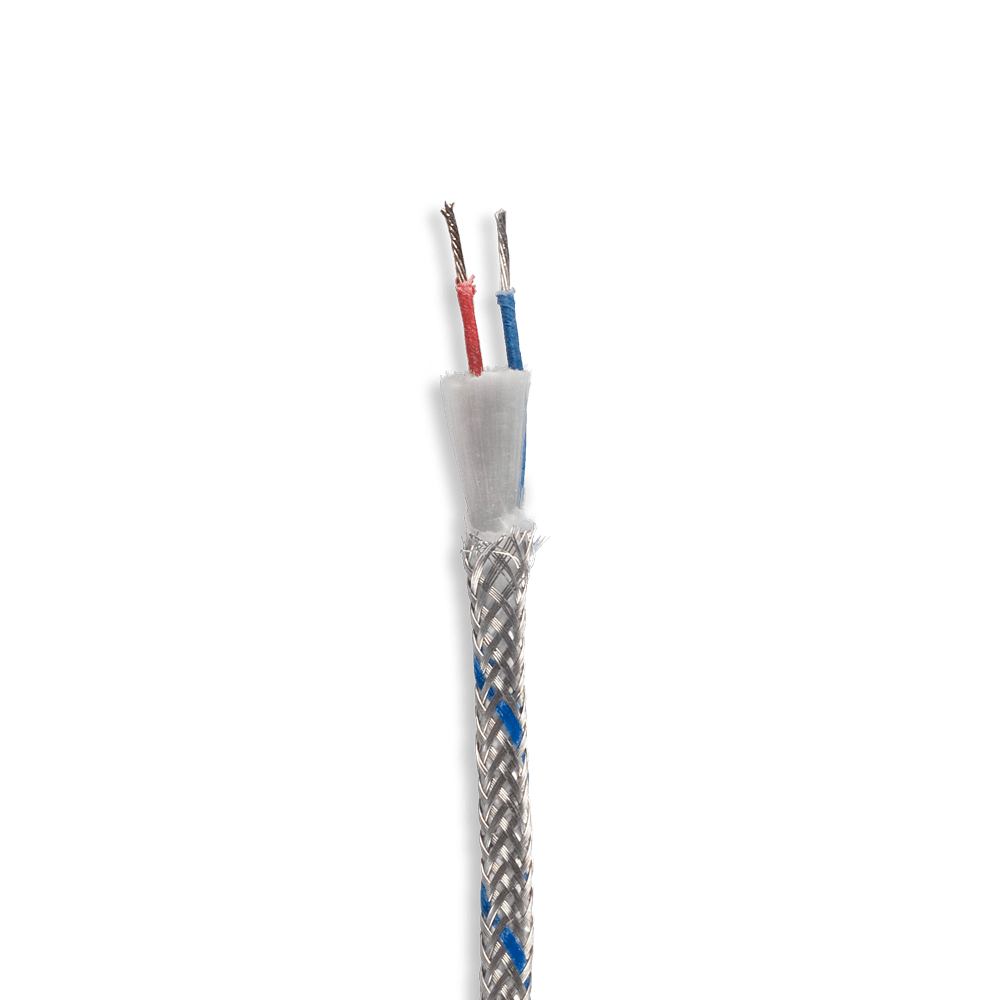

Thermowire
G/GSTW-24F-LL-DIN
Technical data:
- Thermocouple combination: Fe-CuNi Type “L”
- Limiting deviation: DIN 43710, +/-3.0 °C
- Conductor: strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: fibreglass
- Conductor guide: stranded with fibreglass filler insulation
- Outer sheathing: armour-VA braiding
- Operating temperature: up to +450 °C
- Outer dimension: approx. 3.2 mm round
- Sheathing colour: silvery with blue identification thread
- Core colour: + = red, – = blue
Packaging
- individual lengths possible
- coiled as ring up to 25m
- more then 25m on a plastic coil
- delivery as one piece, if not diffrently declared
Discount on large quantities on request.
