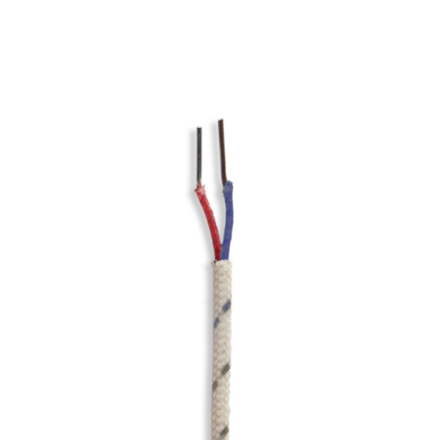

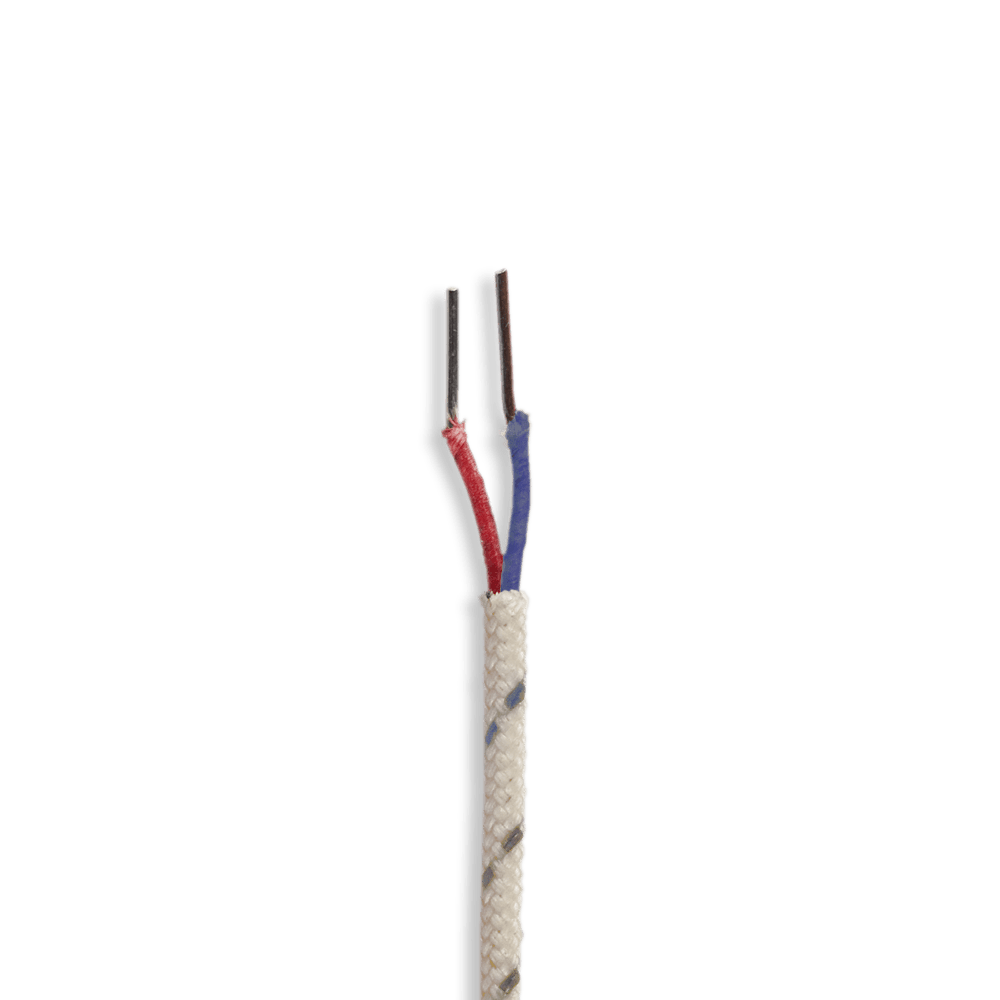

Thermowire
G/G-24-L-DIN
Technical data:
- Thermocouple combination: Fe-CuNi Type “L”
- Limiting deviation: DIN 43710, +/-3.0 °C
- Conductor: Wire, 2 x 0.5 mm
- Conductor insulation: Fibreglass
- Conductor guide: parallel
- Outer sheathing: Fibreglass
- Operating temperature: up to +450 °C
- Exterior dimension: approx. 1.5 x 2.0 mm
- Sheathing colour: white with blue identification thread
- Core colour: + = red, – = blue
Packaging
- individual lengths possible
- coiled as ring up to 25m
- more then 25m on a plastic coil
- delivery as one piece, if not diffrently declared
Discount on large quantities on request.
