Teflon | Type K | gas-, steam-, watertigth

  • Thermocouple pairing: Type K, Cl. 1
  • gas-, steam- and watertight
  • Temperature range: -75°C to +250 °C, short-duration to + 300 °C
  • Wire type: Teflon,0.38 mm, solid, Tmax: +300 °C

Factory calibration (optional)

Would you like a calibration test? Select a maximum of 8 calibration points between -35°C and +660°C and enter the desired temperatures in the field below. Explanation

Depending on the quantity selected, please specify the calibration points between -35°C and +660°C separated by commas.

» individual request
Range Discount
10 - 19 3%
20 - 49 5%
50 + 10%
Sales only to companies, traders and institutions.
We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.
Description

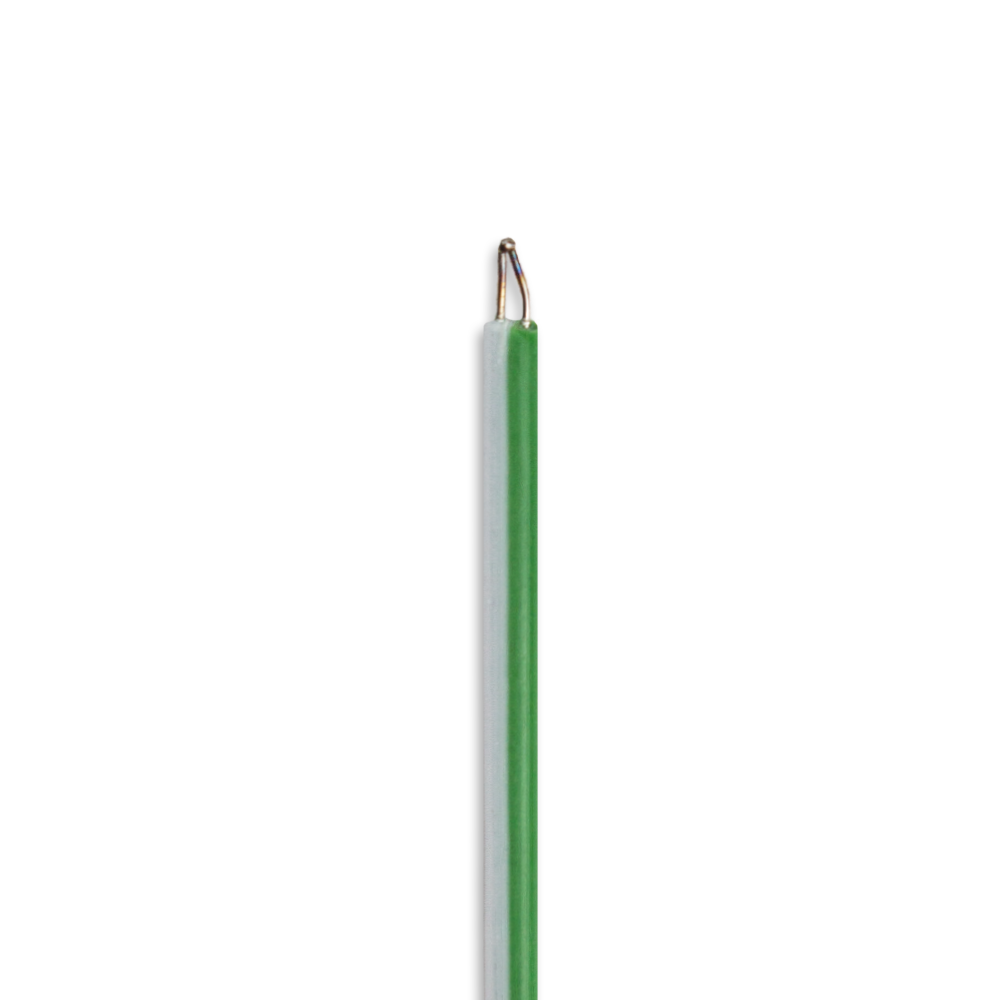

Inline thermocouple Type K

  • gas-, steam- and watertight
  • Temperature range: -75°C to +250 °C, short-duration to + 300 °C
  • Wire type: Teflon,0.38 mm, solid, Tmax: +300 °C

Description

This inline thermocouple is especially invented for using under humid conditions. Compared with normal wire production this wire isolation is made in one work process, both conductors get moulded in Teflon at the same time. With this wire the measurement equipment is protected from capillary rising moisture through the wire.

Technical data

  • Thermocouple pairing: Type K
  • Limiting deviation: Cl.1 as per DIN EN 60584-1: 2014-07
  • Conductor: TeflonTEX-27-KK-IEC-Special
  • Insulation: PTFE-Teflon, 250 °C
  • Conductor Ø: 2 x0.38 mm, solid
  • Dimension: 2.0mm
  • Wire length: 500–5,000 mm
  • Connection: Selection

Discount on large quantities on request

Additional information
Weight 0,05 kg
Individual product inquiry
Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

    Anrede:

    Produkt:

    Required quantity (approx.):

    Mit Sternchen (*) markierte Felder sind Pflichtangaben.

    Your advantages with us for over 30 years
    • Entire production made in Germany (100% handmade)
    • German specialists (Employees have mostly been with the family business since it was founded)
    • High quality and maximum of durability (high quality materials, better and experienced manufacturing)
    • Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
    • Buy sensors & probes online including configuration + further scale of discounts on request
    SKU: 151 Categories: ,
