Friction | Spring loaded | Type J

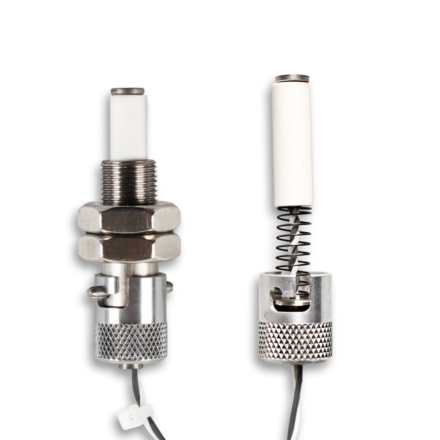

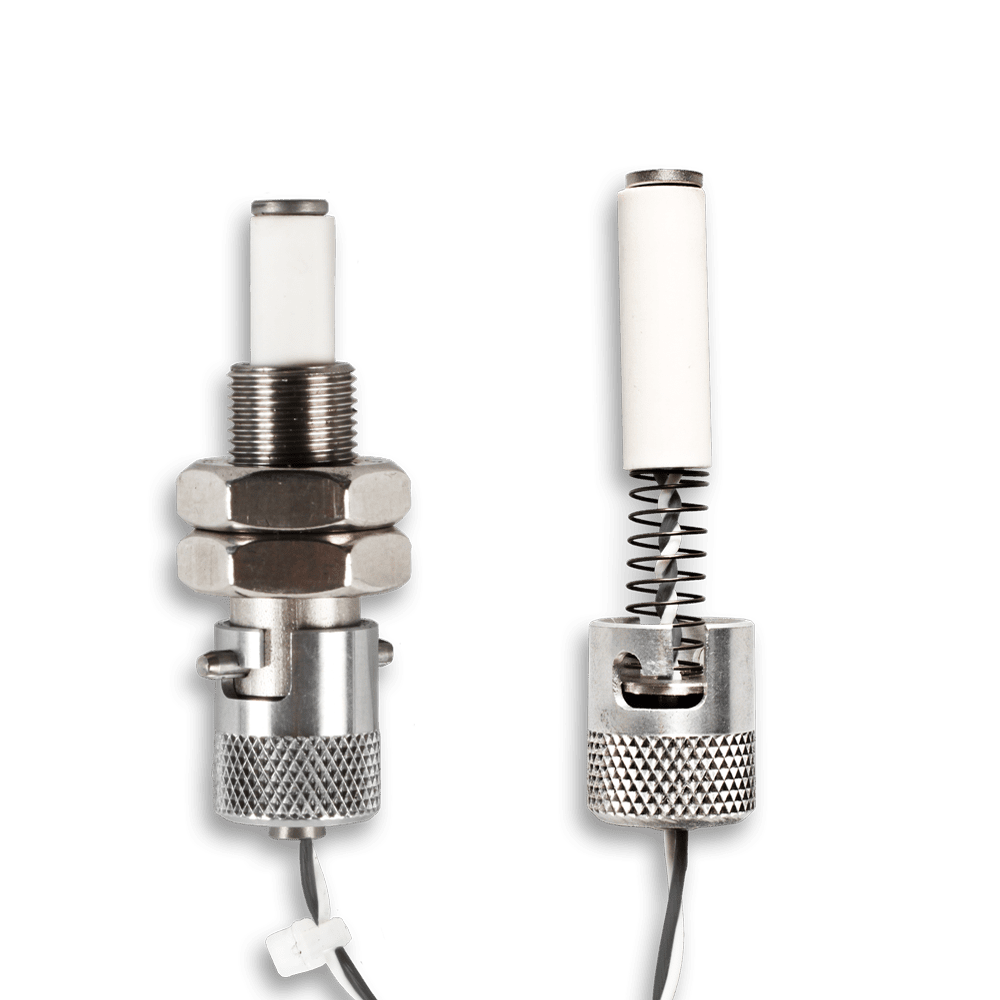

Spring loaded friction thermocouple, Type J

• Temperature range: -100 °C to +900 °C continuous
• Wire type: Teflon, single-conductor, open strand, Tmax: +230 °C continuous

Description

The surface temperature on moving parts, for instance brake disks, drums or raceways is determined with the spring-loaded friction thermocouple. By attaching the mounting adapter, the spring-loaded sensor is guided on the surface with uniform pressure by means of a bayonet cap. That perfectly compensates movements caused by centrifugal force and vibrations as well as the volume decrease caused by wear and it ensures a valid measurement.

Technical data

• Thermocouple pairing: Type J
• Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07

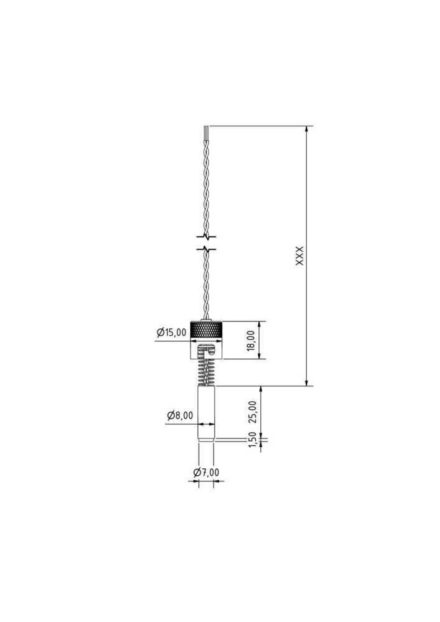

• Measurement point:VA-plate Ø 7.0 mm, 1 mm thick
• Housing:Ceramic, Ø 8.0 x 25 mm
• Wire length: 500–5,000 mm
• Wire length: FEP-Teflon, strand, 2x 0,22 mm², open strand
• Temperature range of the wire:up to 205 °C in continuous duty, 230 °C peak

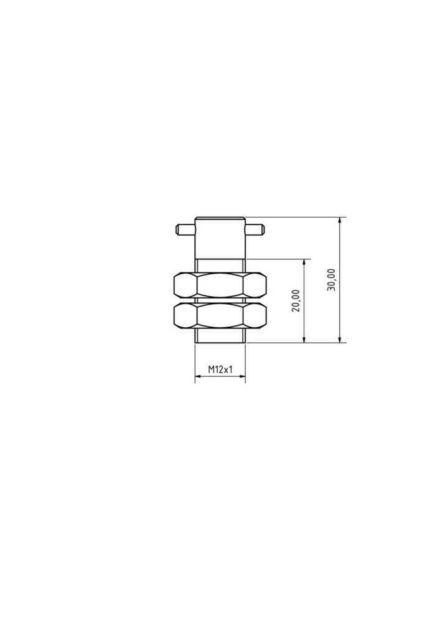

• Connection:With or without bayonet cap and mounting adapter M 12×1 with 2 counternuts

Discount on large quantities on request
