Startseite » Shop » Thermocouples » Sheathing-tube thermocouples » Sheathing tube | Fibreglass | Type K
Previous product
Mini-Sheathing thermocouple | Silicone | Type K | less Ø 1mm 38,10 €
Back to products
Next product
Sheathing tube | Silicone | Type K 16,85 €
Click to enlarge

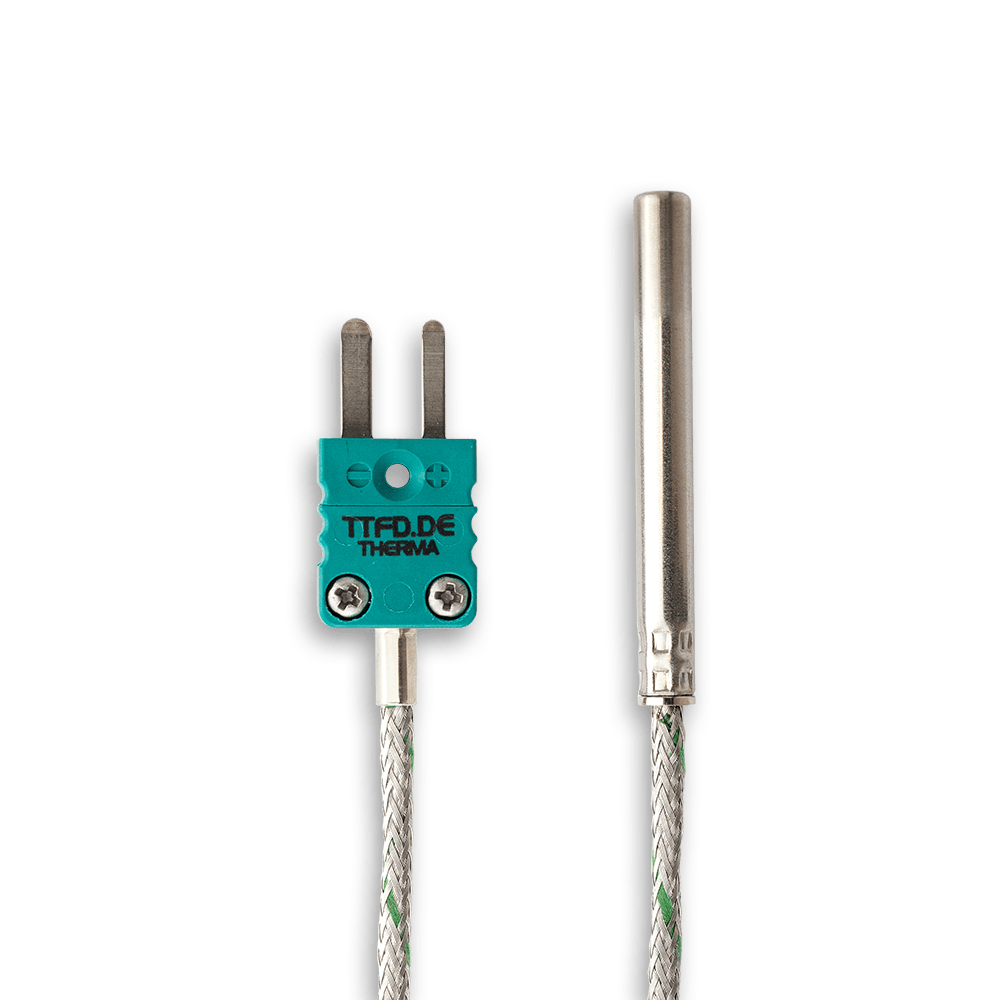

Sheathing tube | Fibreglass | Type K

  • Thermocouple pairing: Type K, Cl. 1
  • Temperature range: -100 °C to +550 °C, continuous
  • Wire type: Fibreglass with VA braid, Tmax: +450 °C, continuous

Title Range Discount
Discount scale 1 6 - 10 5% 16,77 €
Discount scale 2 11 - 20 10% 15,89 €
Discount scale 3 21 + 15% 15,00 €
close
Categories
  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Thermocouple Type K, not flexible, metal design

  • Temperature range: -100 °C to +550 °C, continuous
  • Wire type: Fibreglass with VA braid, Tmax: +450 °C, continuous

Description

Sheathing thermocouples can be used anywhere due to their ruggedness and small design. Whether in industry, development or in the lab. The measurement point comes insulated as standard to exclude any falsification of the measurement evaluation through superposition of the offsets.
The connection lead permits simple routing up to the measured-data acquisition. Options are available for the probe diameter and wire length as well as the type of connection configuration (plug, socket, bare wire ends, etc.).

Technical data

  • Sheathing thermocouple pairing: Type K
  • Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07
  • Protective sleeve: Stainless steel, VA
  • Measuring point: insulated
  • Probe diameter: 4.0–8.0 mm
  • Element length: 50–500 mm
  • Pipe/conduit:Fibreglass with VA braid
  • Conductor: Strand, 2x 0.22 mm²
  • Wire length: 500–5,000 mm
  • Connection: Selection

Discount on large quantities on request

Additional information
Weight 0.14 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 178 Categories: Sheathing-tube thermocouples, Thermocouples
