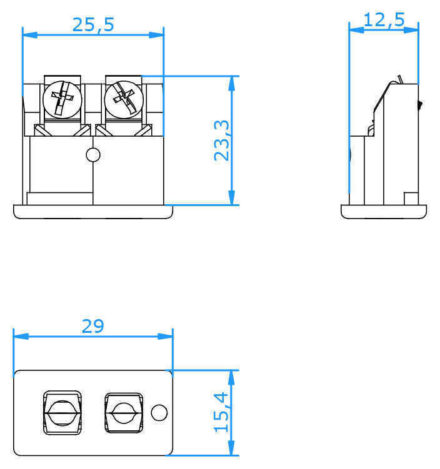

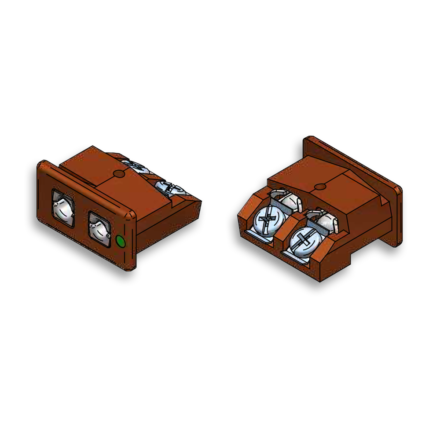

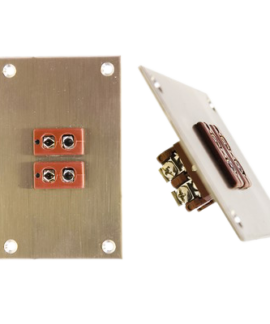

Panel Standard Insert High-temperature (PSIHO)
- Temperature load max. +350 °C
- Contacts of original thermocouple material
- All international colour designations are available
| Quantity | Price | Discount |
|---|---|---|
| 10-24 | 10,75 € | 5% |
| 25-49 | 10,19 € | 10% |
| 50-99 | 9,62 € | 15% |
| 100+ | 9,06 € | 20% |
Discount on large quantities on request
Application:
Panel insert for thermocouple and RTD circuits. Specially designed to be used together with high temperature stainless steel panels.
Mechanical design:
- Thermoset body with original thermocouple material
- springloaded inserts.
- Polarized pins.
- Molded barriers prevent short circuit.
- Polarity indication next to connection screws.
Conductor diameter:
- Accepts wires up to 1,6 mm.
Temperature load:
- Max. +350 °C.
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C

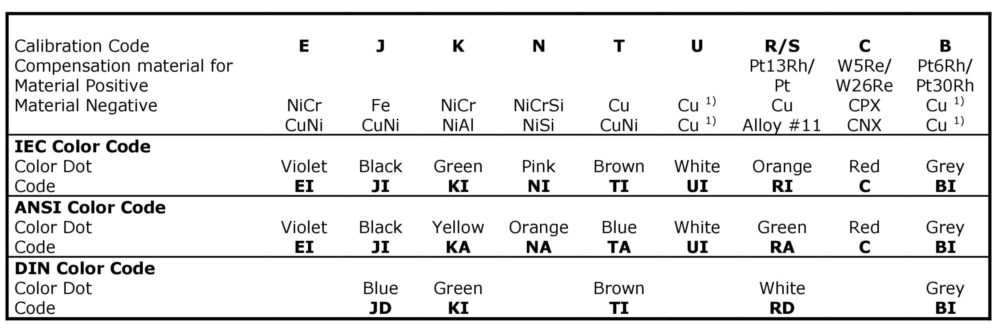

Colour designations:
- Body color brown, calibration indicated by colored dot.
Material-Code:
Discount on large quantities on request
| Weight | 0,03 kg |
|---|
We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:
- Entire production made in Germany (100% handmade)
- German specialists (Employees have mostly been with the family business since it was founded)
- High quality and maximum of durability (high quality materials, better and experienced manufacturing)
- Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
- Buy sensors & probes online including configuration + further scale of discounts on request
- Fast and reliable service - Our customer service team is available to assist you with expert support
- In-house technical development capabilities, including the ability to process and create CAD drawings and STEP files
