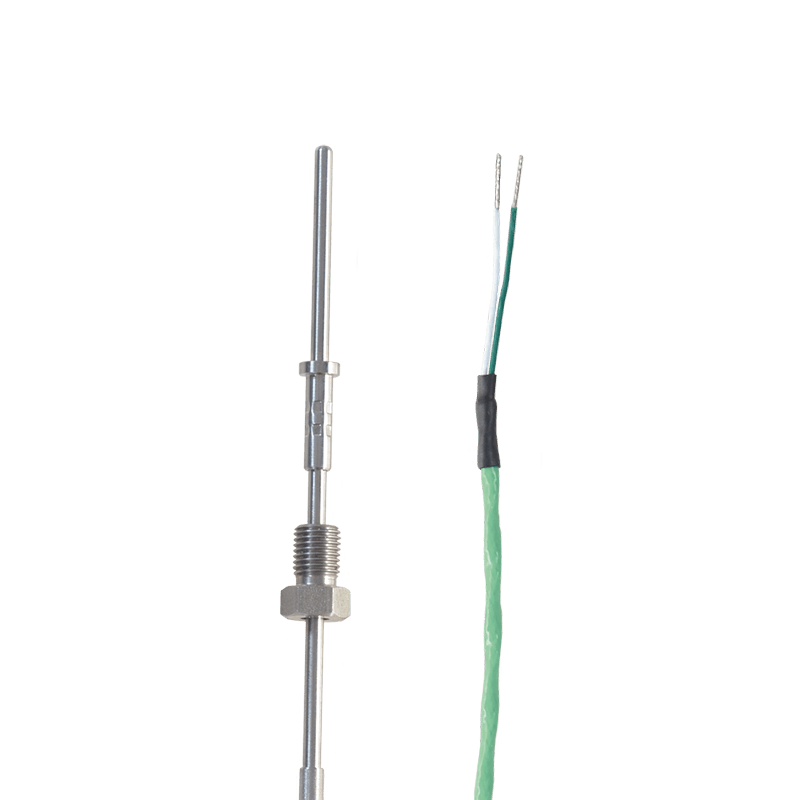

Plug-in thermocouple with cap nut

MST-20283 – plug-in sheathing thermocouple type “K”, NiCr-Ni, Cl. 1 with cap nut

This plug-in sheathing thermocouple is recommended for measuring the temperature in the exhaust gas flow. It is genuinely multipurpose, mounting with the cap nut means the thermocouple does not need to be rotated, which simplifies installation and fast replacement. In addition, it has “motor sports genes” such as vibration resistance, fast response time and high temperature resistance.

The benefits:

• Vibration-proof
• Fast response time
• High temperature resistance (up to 1,200 °C)
• Various installation lengths can be supplied
• With cap nut

Technical data:

• Sheathed thermocouple NiCr-Ni, Type “K”
• Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07

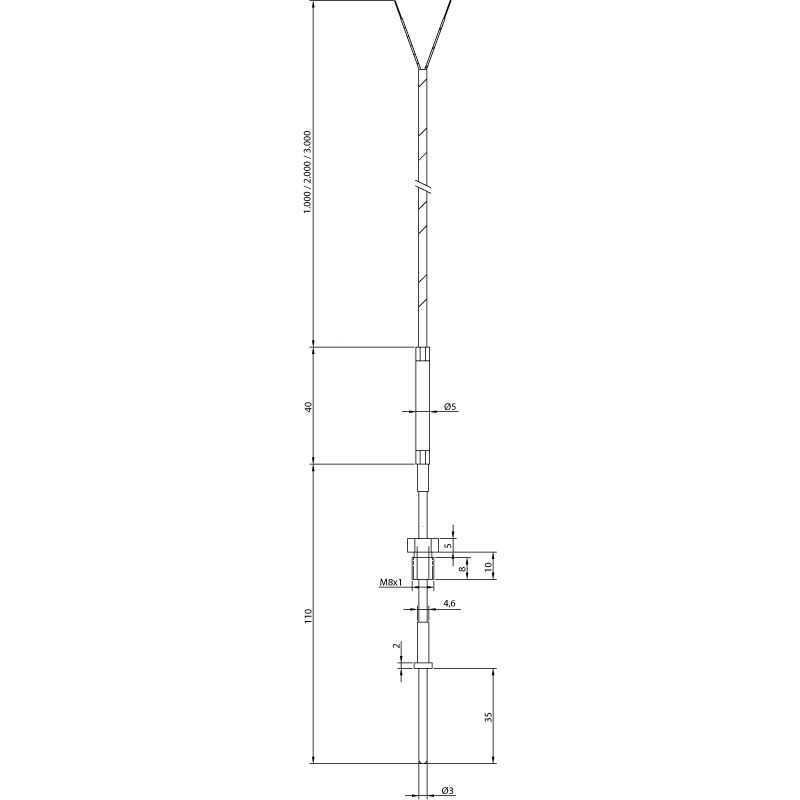

• Sensor diameter: 3.0 mm
• Sheathing material: Nimonic75, double-walled
• Measuring point: hot junction insulated
• Sensor length: 110 mm
• Adapter sleeve: VA, 5.0 x 40 mm, with 4.0 x 10 mm supporting sleeve
• Line length: 1,000 mm, 2,000 mm or 3,000 mm
• Line type: FEP-Teflon with Cu shield
• Conductor: Strand, 2x 0.22 mm²
• Temperature range of the line: up to 205 °C in continuous duty, 230 °C peak
• Connection: Selection
• Operating temperature: up to 1,200 °C

Other installation lengths or large quantities on request.
