Startseite » Shop » Motor sports » Displays and transmitters » THK – Thermocouple Amplifier
THN – Digital & Analog Thermocouple Connector Conditionner 255,00 €
Back to products
Panel Assembly Standard Horizontal (PAS) 16,46 €
Click to enlarge

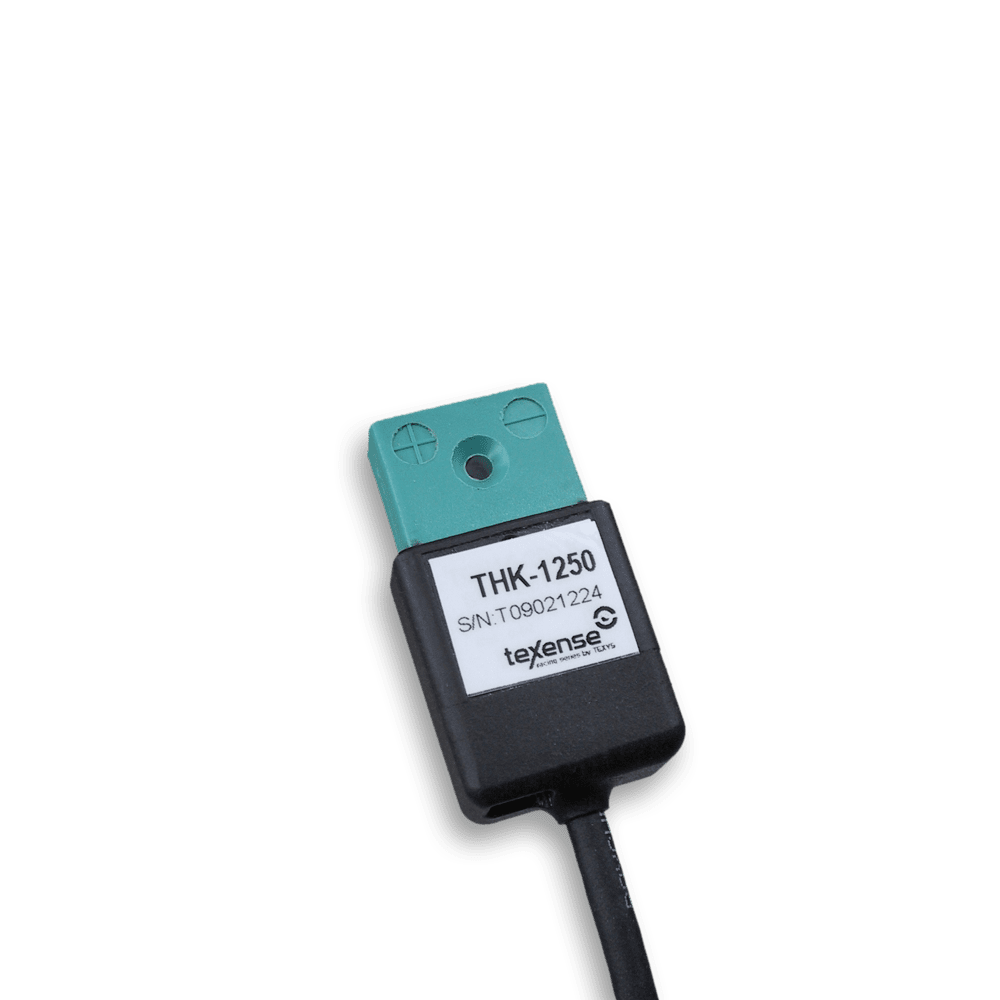

THK – Thermocouple Amplifier

  • for thermocouples type K
  • Vibration-proof
  • suitable for miniature thermocouple plug

Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

THK 200
THK 400
THK 1250

Compatible with any thermocouple probe type K fitted with a miniature plug. The thermocouple probe wires must be isolated from supply ground.

Range:

  • THK 200: -50 to 200 °C
  • THK 400: -100 to 400 °C
  • THK 1250: 0 to 1250 °C

Sensitivity:

  • THK 200: 20 mV/°C
  • THK 400: 10 mV/°C
  • THK 1250: 4 mV/°C

More technical Details (for THK 200, 400, 1250):

  • Pet housing
  • Dimensions : 37 x 20 x 10 mm
  • Weight : 15 g
  • Thermocouple: Type K
  • Accuracy: +/- 2 % FS
  • Response time: 200 ms
  • Supply Voltage: 5 to 16 V
  • Supply current 1,5 mA
  • Output Voltage : 0 to 5 V
  • Calibrator Fluke 714
  • Protection IP53
  • Vibration test 20Gpp 5’
  • Shock 1000 G
  • Operating Temp 0 to +80°C
  • Storage Temp -40 to +125°C
  • Connection : 1 metre of 3 x AWG 26 PTFE shielded cable

Standard connections:

  • Red: Supply (5 to 16 V)
  • White: Output signal
  • Blue: GND (0 V)
Additional information
Weight 0,05 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 189 Categories: Displays and transmitters, Transmitters
