Startseite » Shop » Motor sports » Displays and transmitters » THA – Thermocouple Connector Conditionner
Panel Assembly Standard Horizontal (PAS) 16,46 €
Back to products
Digital thermometer for NiCr-Ni, Pt100 or Pt1000 59,80 €
Click to enlarge

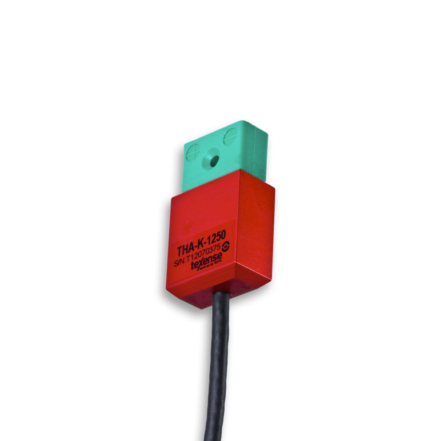

THA – Thermocouple Connector Conditionner

  • Vibration-proof
  • suitable for miniature thermocouple plug
  • for thermocouple type K, J or T

Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

THA 200
THA 400
THA 1000
THA 1250



Compatible with any thermocouple probe type K, J or T (selection) fitted with a miniature plug. The thermocouple probe wires must be isolated from supply ground.

Temperature range:

  • THA 200: -50 bis 200 °C
  • THA 400: -100 bis 400 °C
  • THA 1000: 0 bis 1.000 °C
  • THA 1250: 0 bis 1.250 °C

Sensitivity:

  • THA 200: 20 mV/°C
  • THA 400: 10 mV/°C
  • THA 1.000: 5 mV/°C
  • THA 1250: 4 mV/°C

Technical data:

  • Range: From -20 – +120 °C To 0 – +1250 °C
  • Type: K, J, T, …
  • Cold junction error: 1 °C
  • Accuracy (Range < 1000 °C): 0.5 %FS
  • Accuracy (Range > 1000 °C): 1 %FS
  • Drift vs. Ambient Temperature: 0.5 °C
  • Sensitivity Linear See calibration table: mV/°C
  • Supply Voltage: 5 to 16 V
  • Supply Current: 2 mA
  • Output Voltage: 0–5 V
  • Output Impedance: 47 Ω
  • Calibrator: Fluke 714

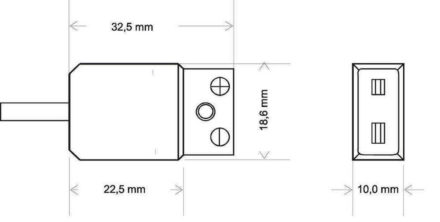

  • Dimension: 32,5 x 19 x 10 mm
  • Material: Aluminium
  • Weight: 15 g
  • Protection: IP53
  • Vibration test: 20Gpp5’
  • Shock: 500 G
  • Operating Temp: 0 to +100 °C
  • Storage Temp: -40 to + 125 °C
Calibration tables
Target °C -50 to +200 °C
20 mV/°C
-100 to +400 °C
10 mV/°C
0 to +1000 °C
5 mV/°C
0 to +1250 °C
4 mV/°C
-100 0.00
-50 0.00 0.50
0 1.00 1.00 0.00 0.00
50 2.00 1.50 0.25 0.20
100 3.00 2.00 0.50 0.40
150 4.00 2.50 0.75 0.60
200 5.00 3.00 1.00 0.80
300 4.00 1.50 1.20
400 5.00 2.00 1.60
600 3.00 2.40
800 4.00 3.20
1000 5.00 4.00
1250 5.00
Additional information
Weight 0,05 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 190 Categories: Transmitters, Displays and transmitters
