Data logger temperature | 2-channels | Pt100
- Two external sensor connections (2x Pt100)
Discount on large quantities on request
Data logger for two external thermocouples

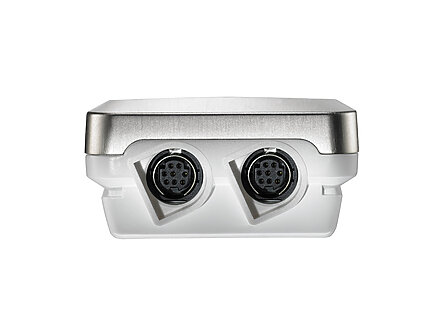

- Connection 2 x Mini-DIN plug (8-pins)
Pt100
- Measuring range: -100 … +400 °C
- Accuracy ±1 digit: ±0.2 °C (-100 … +200 °C); ±0.3 °C (+200.1 … +400 °C)
- Resolution: 0.01°C
Benefits
- Large, easily legible display
- High data security
- Measurement data memory for 2 million measurement values
- Up to 8 years’ battery life
- Data transfer via USB cable or SD card
- Two external sensor connections (2x pt100)
Description

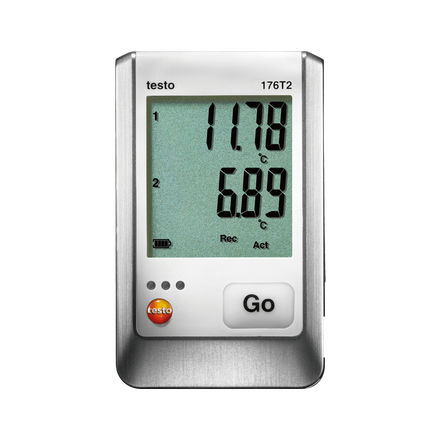

Temperature often needs to be monitored and recorded simultaneously at two sites. The testo 176 T2 is excellently suited to this job, thanks to two connections for external resistance probes (2x Pt100). The good accuracy makes the data logger universally applicable. The free ComSoft Basic software allows fast programming of the data logger and easy data analysis. With the testo 176 T2 and the versatile external resistance probes, you can, for example, perform targeted checks on the flow and return temperatures of individual radiators, in order to identify and remedy causes.
Technical data
- Channels: 2 x external
- Battery type: 1 x Lithium (TL-5903)
- Battery life: 8 years (15 min. measuring cycle, +25 °C)
- Operating temperature: -35 … +85 °C
- Storage temperature: -40 … +85 °C
- Dimensions: 103 x 63 x 33 mm
- Weight: 220 g
- Housing: Kunststoff
- EU Directive: 2014/30/EU; 2011/65/EU; DIN EN 12830
- Protection class: IP65
- Measuring rate: 1 sec – 24 h
- Memory: 1 mio. measurement values
Equipment / Items delivered
testo 176 T2, 2-channel temperature data logger with external sensor connections incl. wall holder, lock, batteries and calibration protocol

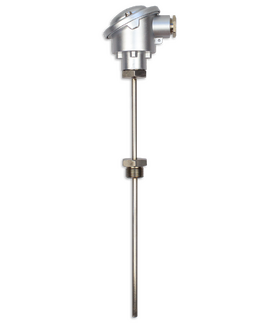

matching resistance thermometers
Discount on large quantities on request
| Weight | 0,25 kg |
|---|
We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:
- Entire production made in Germany (100% handmade)
- German specialists (Employees have mostly been with the family business since it was founded)
- High quality and maximum of durability (high quality materials, better and experienced manufacturing)
- Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
- Buy sensors & probes online including configuration + further scale of discounts on request
- Fast and reliable service - Our customer service team is available to assist you with expert support
- In-house technical development capabilities, including the ability to process and create CAD drawings and STEP files
