Startseite » Shop » Wires and cables » Compensating wires » Type "L" » Teflon » Teflon | Type L | AWG 24F
Previous product
TF/TF-24F-KK-IEC | 100 m 170,00 €
Back to products
Next product
Teflon with shield | Type N | AWG 24F 3,79 €
Click to enlarge

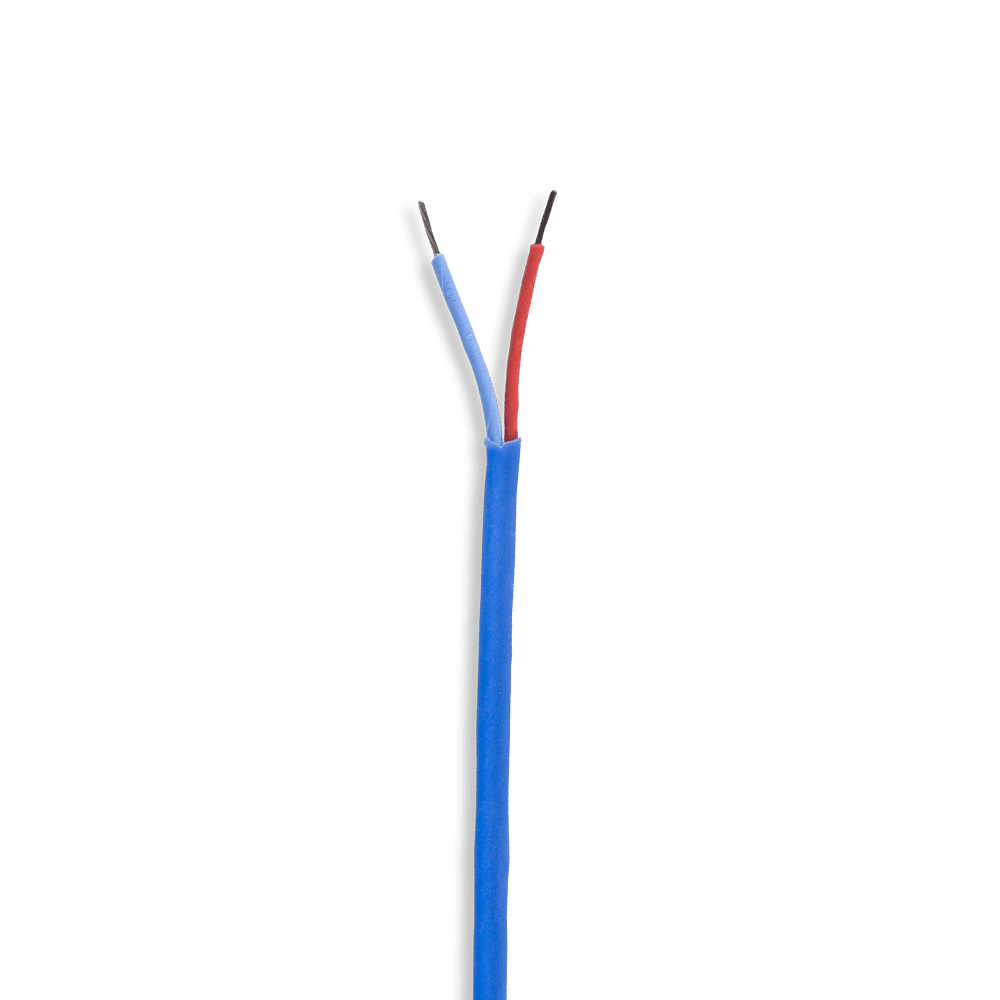

Teflon | Type L | AWG 24F

Technical data:

  • Thermocouple combination: Fe-CuNi Type “L”
  • Limiting deviation: DIN 43710, +/-3.0 °C
  • Conductor: Strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
  • Conductor insulation: PTFE Teflon
  • Conductor guide: parallel
  • Outer sheathing: PTFE Teflon
  • Operating temperature: -190 °C to +260 °C
  • Exterior dimension: approx. 3.0 x 1.8 mm
  • Sheathing colour: blue
  • Core colour: + = red, – = blue

close
Categories
  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Thermowire
TF/TF-24F-LL-DIN

Technical data:

  • Thermocouple combination: Fe-CuNi Type “L”
  • Limiting deviation: DIN 43710, +/-3.0 °C
  • Conductor: Strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
  • Conductor insulation: PTFE Teflon
  • Conductor guide: parallel
  • Outer sheathing: PTFE Teflon
  • Operating temperature: -190 °C to +260 °C
  • Exterior dimension: approx. 3.0 x 1.8 mm
  • Sheathing colour: blue
  • Core colour: + = red, – = blue

Packaging

  • individual lengths possible
  • coiled as ring up to 25m
  • more then 25m on a plastic coil
  • delivery as one piece, if not diffrently declared



Discount on large quantities on request.

Additional information
Weight 0.15 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 97 Categories: Compensating wires, Teflon, Teflon, Thermowires, Type "L", Type "L", Wires and cables
