Length 25 m
Technical data:
- Thermocouple combination: NiCr-Ni Type “K”
- Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
- Stranded conductor: stranded, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: PFA Teflon
- Conductor guide: parallel
- Outer sheathing: PFA Teflon
- Operating temperature: -190 °C to +260 °C
- Exterior dimension: approx. 2.2 x 1.3 mm

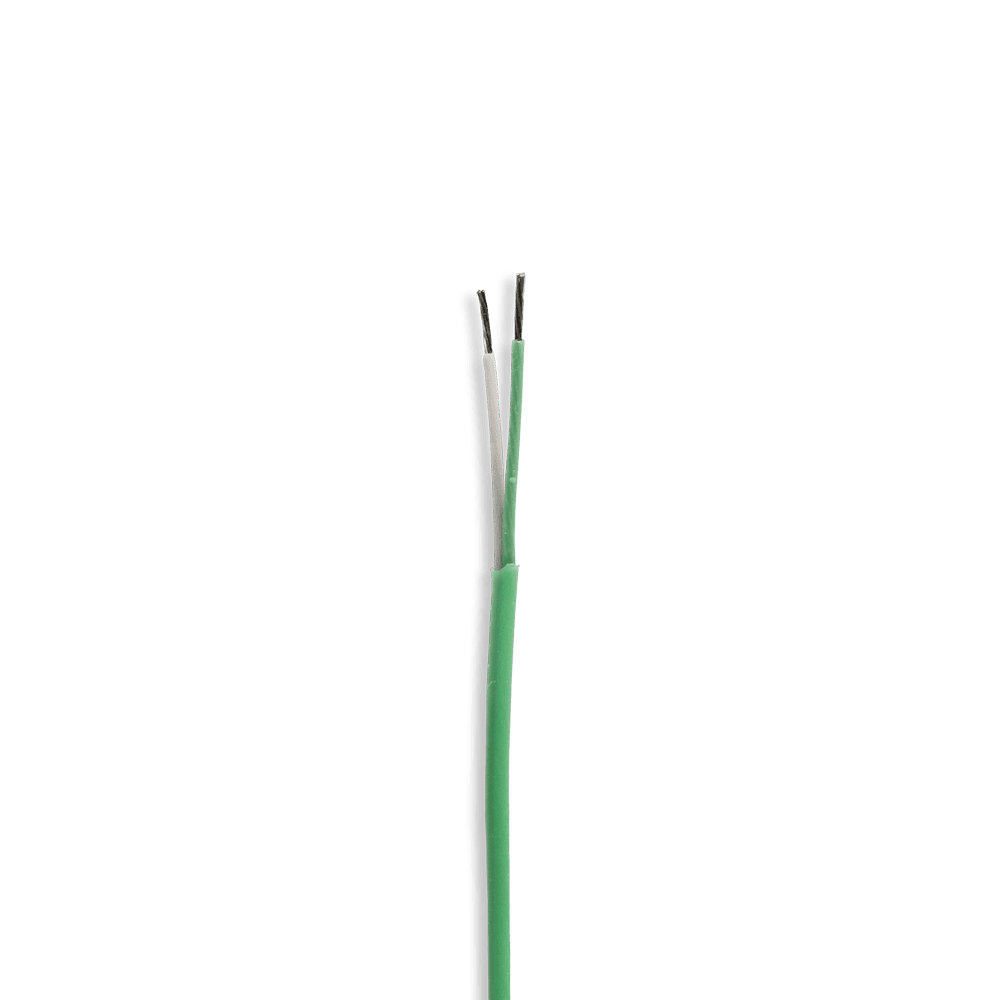

- Sheathing colour: green
- Core colour: + = green, – = white
