Length 25 m
Technical data:

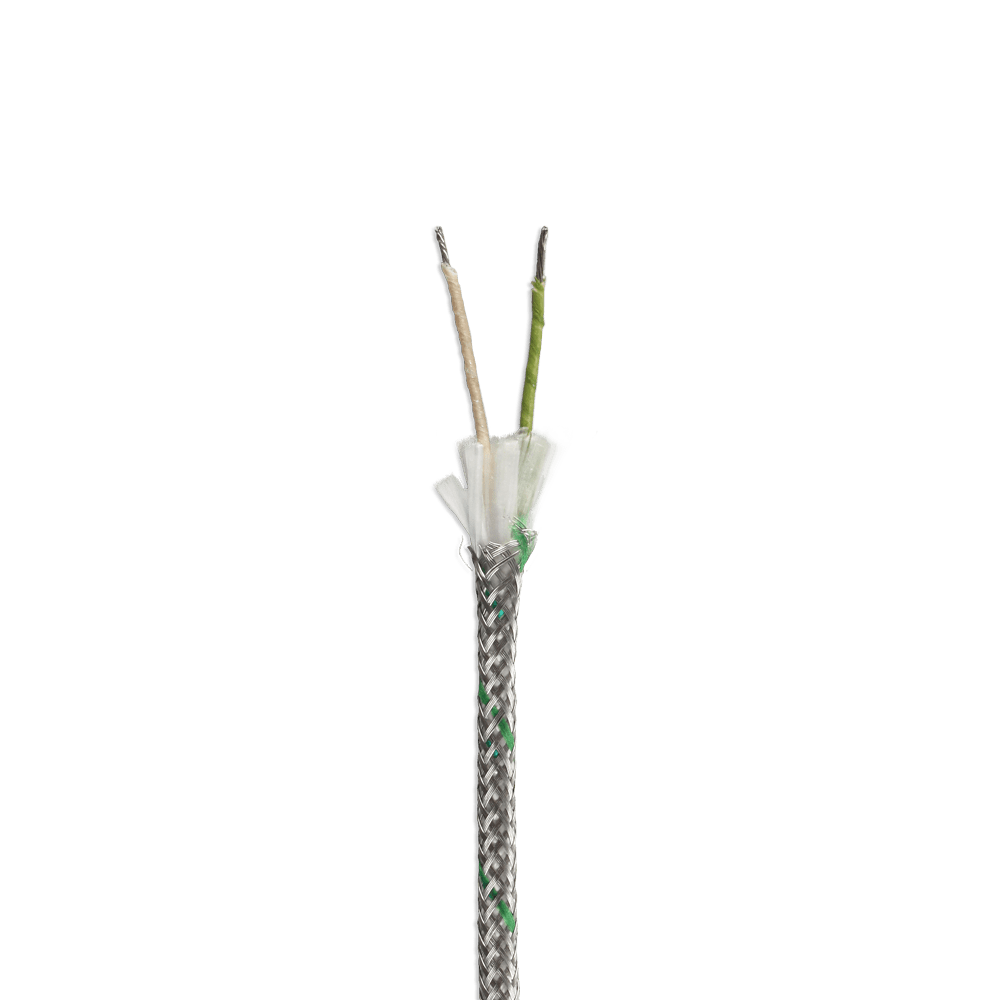

- Thermocouple combination: NiCr-Ni Type “K”
- Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
- Conductor: Strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: Fibreglass
- Conductor guide: stranded with fibreglass filler insulation
- Outer sheathing: armour-VA braiding
- Operating temperature: up to +450 °C
- Outer dimension: approx. 2.3 mm round
- Sheathing colour: silver with green identification thread
- Core colour: + = green, – = white
