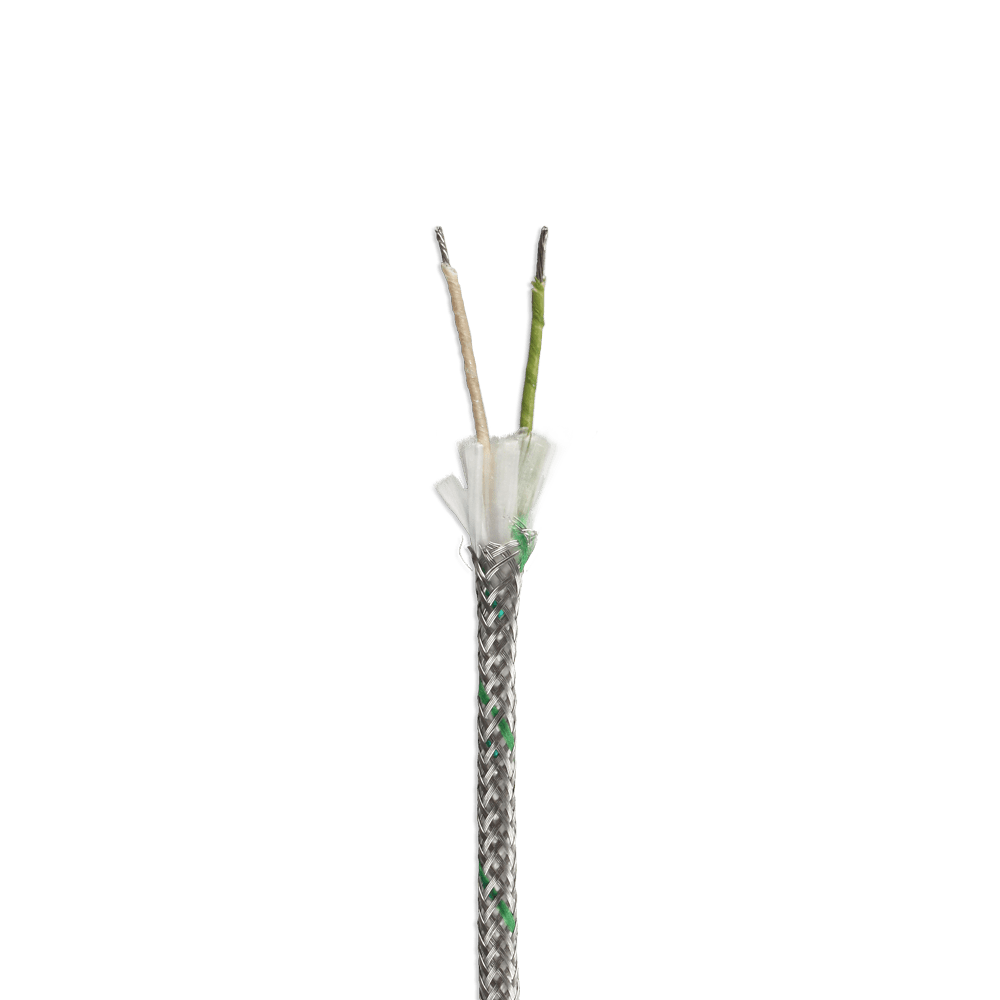

G/GSTW-24F-KK-IEC | 100 m

Technical data:

Thermocouple combination: NiCr-Ni Type “K”
Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
Conductor: Strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
Conductor insulation: Fibreglass
Conductor guide: stranded with fibreglass filler insulation
Outer sheathing: armour-VA braiding
Operating temperature: up to +450 °C
Outer dimension: approx. 2.3 mm round
Sheathing colour: silver with green identification thread
Core colour: + = green, – = white

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Length 100 m

Technical data:

Thermocouple combination: NiCr-Ni Type “K”
Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
Conductor: Strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
Conductor insulation: Fibreglass
Conductor guide: stranded with fibreglass filler insulation
Outer sheathing: armour-VA braiding
Operating temperature: up to +450 °C
Outer dimension: approx. 2.3 mm round
Sheathing colour: silver with green identification thread
Core colour: + = green, – = white

Additional information

Weight	2,50 kg
