Cable lug | Fibreglass | Type J

Thermocouple pairing: Type J, Cl. 1
Temperature range: -100 °C to +550 °C continuous
Wire type: Fibreglass with VA braid, Tmax: +450 °C continuous

Title	Range	Discount
Discount scale 1	6 - 10	5% 19,52 €
Discount scale 2	11 - 20	10% 18,50 €
Discount scale 3	21 +	15% 17,47 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

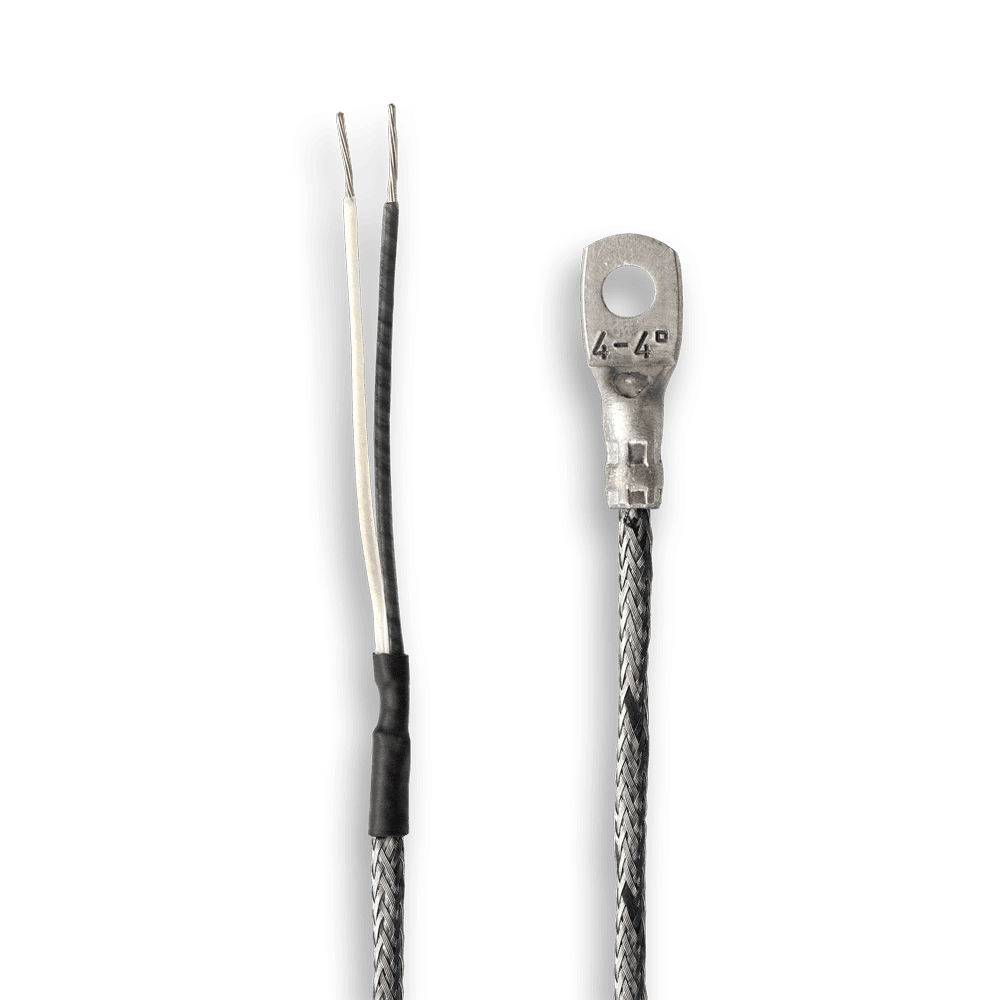

Cable lug surface thermocouple, Type J

Temperature range: -100 °C to +550 °C continuous
Wire type: Fibreglass with VA braid, Tmax: +450 °C continuous

Description

This surface thermocouple is made solely for screwing on. The placement of the measurement point the surface to be screwed-on guarantees optimum temperature detection. We kept the most common thread sizes in mind for fastening.

Technical data

Thermocouple pairing: Type J
Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07
Measurement point:In the cable lug near the attachment point
Housing: Cu tinned
Fastening screw: M4 / M5 / M6 / M8
Conductor: Fibreglass with VA braid
Conductor:Strand, 2x 0.22 mm²
Wire length: 500–5,000 mm
Connection: Selection

Discount on large quantities on request

Additional information

Weight	0,14 kg

Your advantages with us for over 30 years

Entire production made in Germany (handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Further scale of discounts on request

SKU: 375 Categories: Thermocouples, Surface thermocouple
