Length 100 m

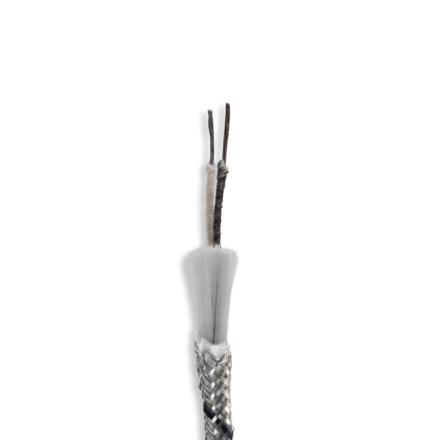

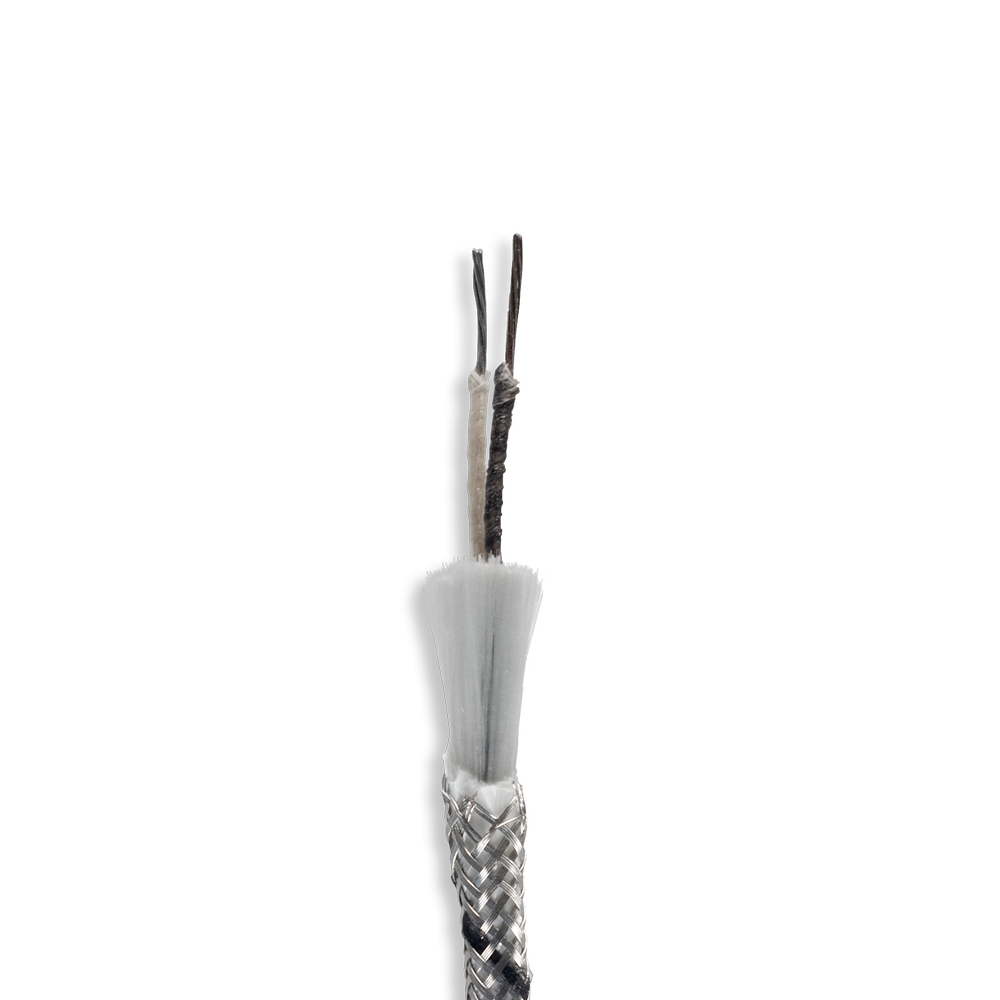

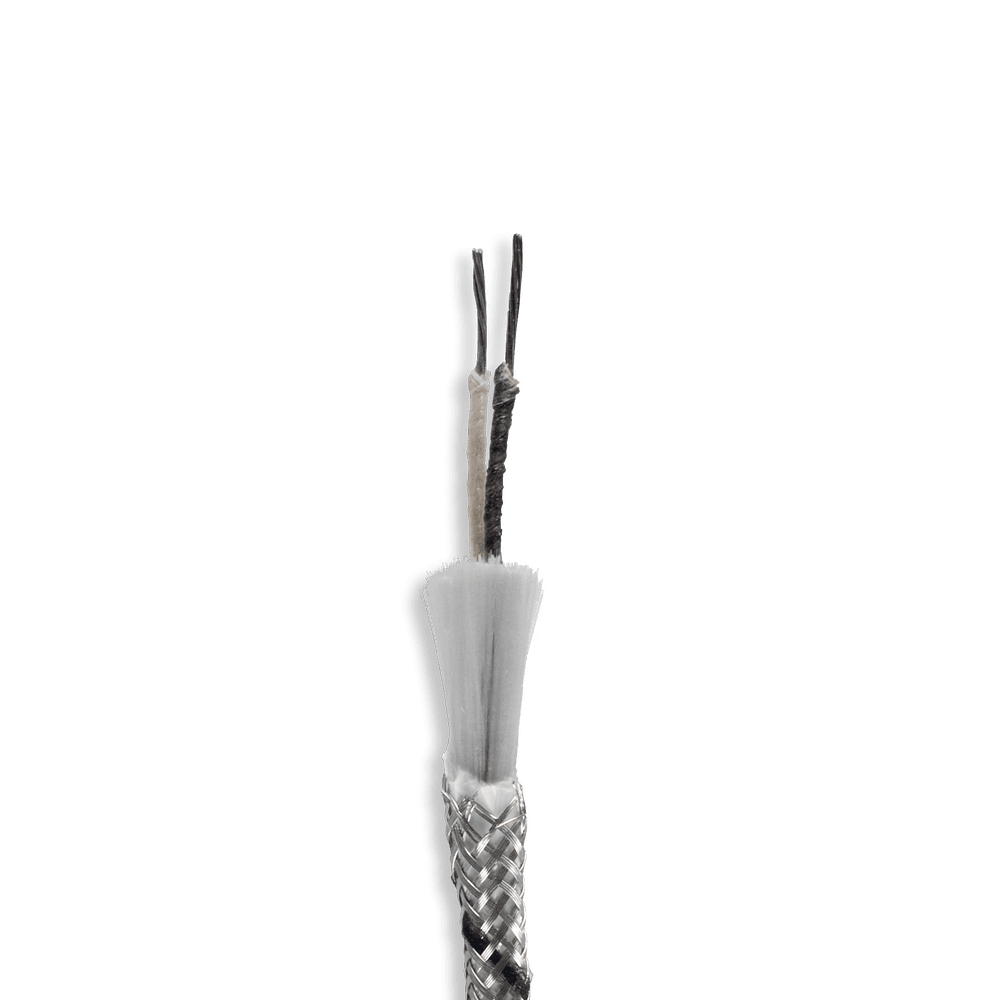

Technical data:
- Thermocouple combination: Fe-CuNi Type “J”
- Limiting deviation: Class 2, DIN IEC 584 Part 2, +/- 2.5 °C or 0.0075 x | t |
- Conductor: Strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: fibreglass
- Conductor guide: stranded
- Braiding: fibreglass
- Outer sheathing: armour-VA braiding
- Operating temperature: up to +450 °C
- Outer dimension: approx. 3.2 mm round
- Sheathing colour: silvery with black identification thread
- Core colour: + = black, – = white
