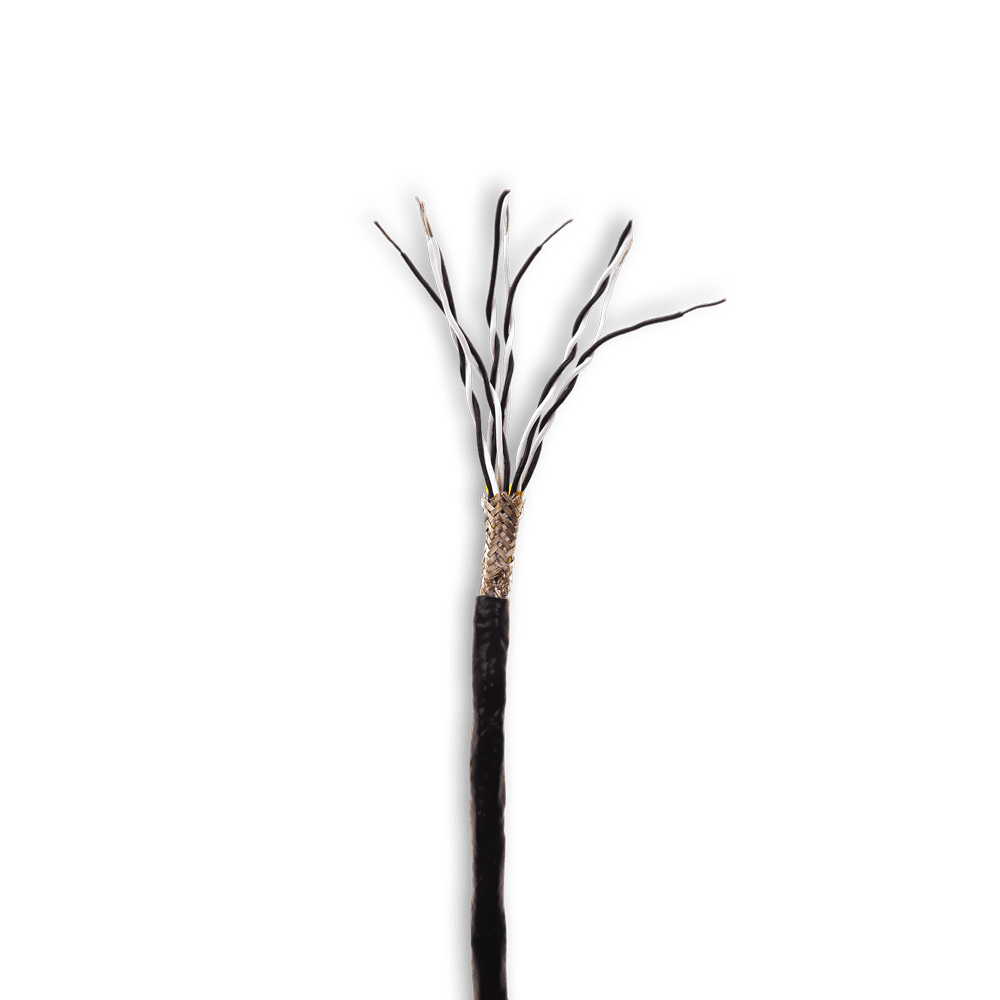

Length 50 m
Technical data
- Thermocouple combination: Fe-CuNi Type „J”
- Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
- Stranded conductor: stranded, AWG 24F, 6 x 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: FEP Teflon
- Conductor guide: stranded
- Braiding: Cu tin-plated
- Outer sheathing: FEP Teflon
- Operating temperature: -100 °C to +200 °C
- Outer dimension: approx. 7.4 mm round
- Sheathing colour: black
- Core colour: + = black, – = white
