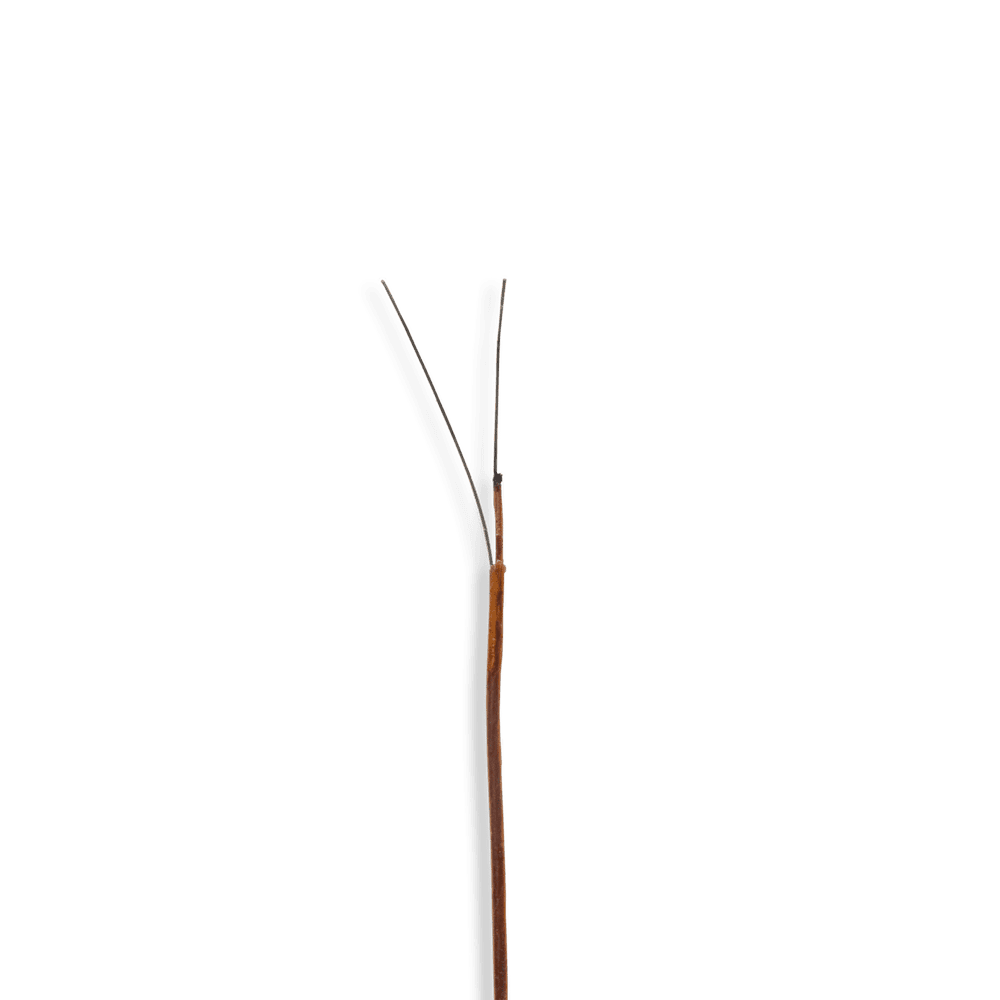

KFD-30-J-IEC | 100 m

Technical data:

Thermocouple combination: Fe-CuNi Type “J”
Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 2.5 °C or 0.0075 x | t |
Stranded conductor: Wire, 2 x 0.2 mm
Conductor insulation: Kapton
Conductor guide: parallel
Outer sheathing: Kapton
Operating temperature: –265 °C to +285 °C
Exterior dimension: approx. 0.8 x 0.7 mm
Sheathing colour: brown
Core colour: + = brown (magnetic), – = brown

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

Length 100 m

Technical data:

Thermocouple combination: Fe-CuNi Type “J”
Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 2.5 °C or 0.0075 x | t |
Stranded conductor: Wire, 2 x 0.2 mm
Conductor insulation: Kapton
Conductor guide: parallel
Outer sheathing: Kapton
Operating temperature: –265 °C to +285 °C
Exterior dimension: approx. 0.8 x 0.7 mm
Sheathing colour: brown
Core colour: + = brown (magnetic), – = brown

Additional information

Weight	1,00 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 302 Categories: Wires and cables, Thermowires, Type "J", Kapton, Compensating wires, Type "J", Kapton
