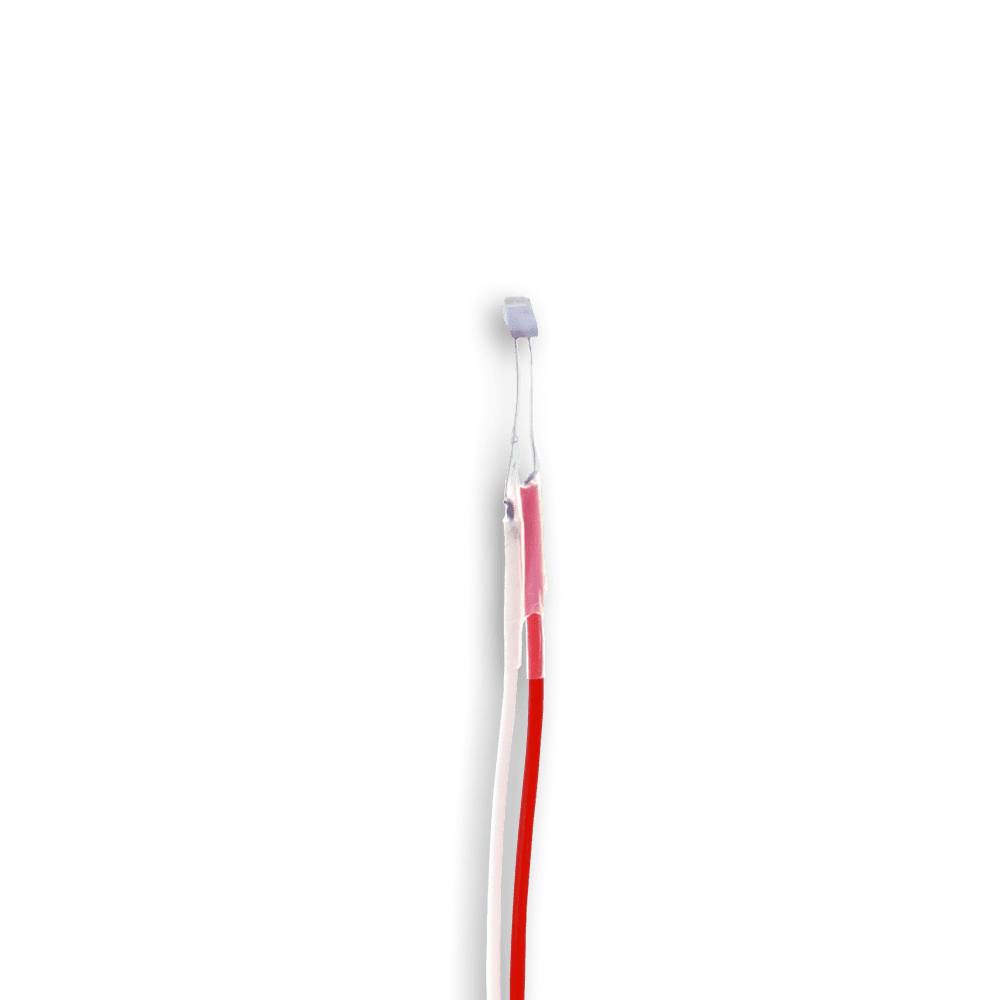

Wire RTD | Pt1000

Resistance: Pt1000
Circuit type: 2-wire technology
Measurement range: -70 °C to +260 °C

Resistance *

Wire length *

Connector *

Factory calibration (optional)
Would you like a calibration test? Select a maximum of 8 calibration points between -35°C and +660°C and enter the desired temperatures in the field below. Explanation

Select quantity of calibration points

Select quantity of calibration points
Please select the desired calibration points between -35°C and +660°C below:

C. point 1

C. point 2

C. point 3

C. point 4

C. point 5

C. point 6

C. point 7

C. point 8

Title	Range	Discount
Rabattstaffel 1	10 - 19	3% 13,48 €
Rabattstaffel 2	20 - 49	5% 13,21 €
Rabattstaffel 3	50 +	10% 12,51 €

Discount on large quantities on request

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Inline resistance thermometer Pt1000

Technical data

Measurement range: -70 °C to +260 °C
Electrical resistance: Pt1000
Tolerance:B / A or AA as per DIN IEC 751
Conductor:PTFE-Teflon
Conductor guide: open
Conductor:Strand, Cuvs, AWG 24F, 2 x 0.22 mm² (19 x 0.127 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
R ISO / 1000VDC: >200 MOhm
Measuring current: recommended 0,1mA, maximum 1 mA
For protection the RTD is standardly covered with a PTFE-isolation.

Class	range of validity [°C]	Limiting deviation [°C]
AA	-50 bis +200	±(0,1 + 0,0017\|t\|)
A	-70 bis +300	±(0,15 + 0,002\|t\|)
B	-70 bis +550	±(0,3 + 0,005\|t\|)

Discount on large quantities on request

Additional information

Weight	0,06 kg
