Surface-RTD | Spring loaded | Pt100

Resistance: Pt100 Cl. B
Measurement range: -50 °C to +260 °C

Circuit type *

Wire length *

Connector *

Mounting adapter *

» individual request

Title	Range	Discount
Rabattstaffel 1	3 - 9	3% 84,31 €
Rabattstaffel 2	10 - 24	5% 82,57 €
Rabattstaffel 3	25 +	10% 78,23 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Surface resistance thermometer Pt100

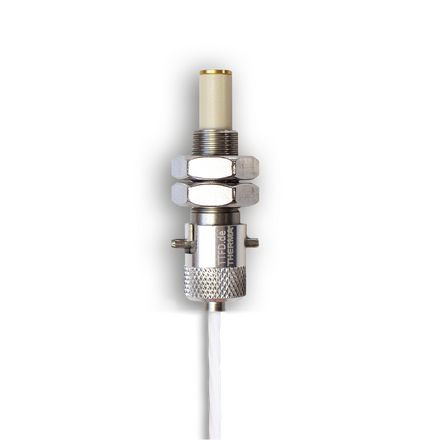

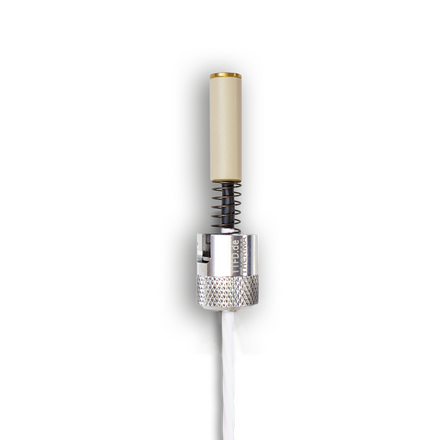

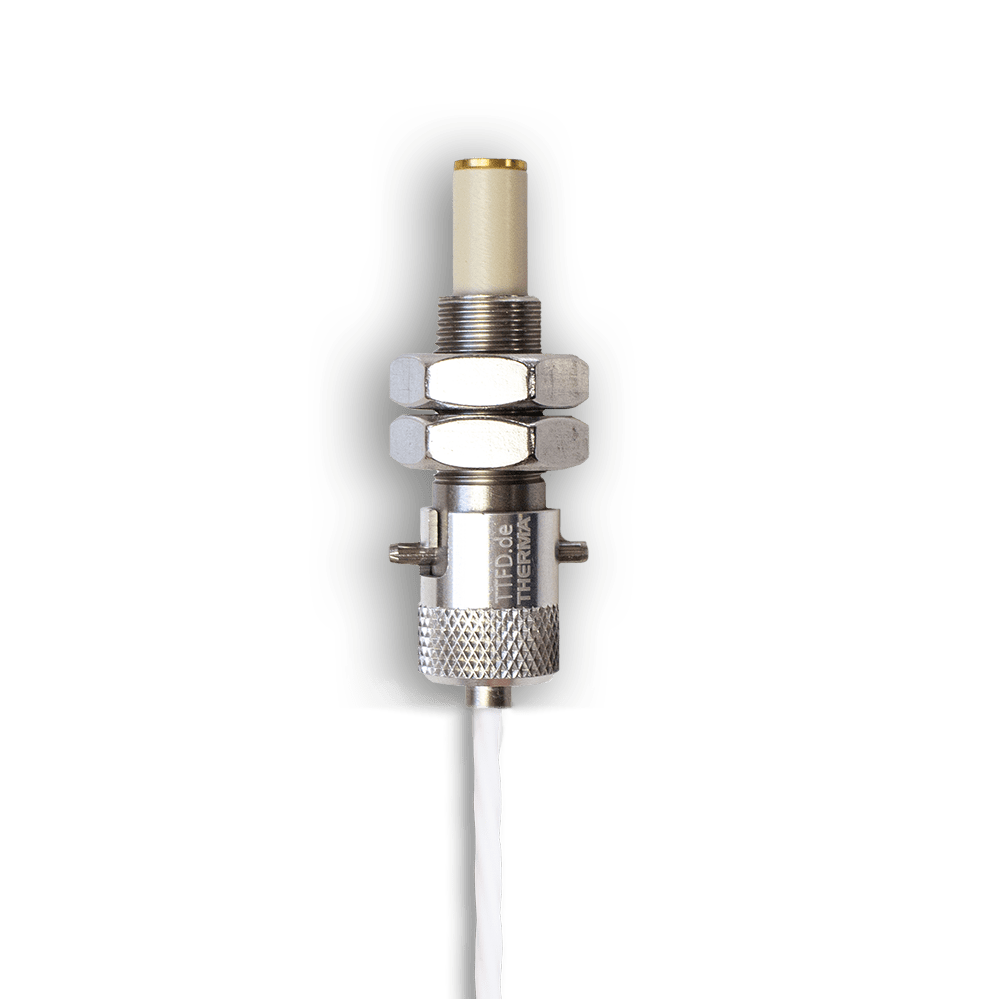

This spring-loaded surface resistance thermometer is particularly suitable for measuring the temperature of metallic surfaces. The sensor is embedded in a thin brass plate and can therefore react very quickly to changes in temperature. With the mounting adapter, the sensor is held on the surface with a bayonet cap.

Technical data

Measurement range: -50 °C to +260 °C, up to 300° for short periods
Electrical resistance: Pt100
Tolerance:B DIN EN 60751:2009-05
Circuit type:2, 3 or 4-wire technique
Housing: PEEK

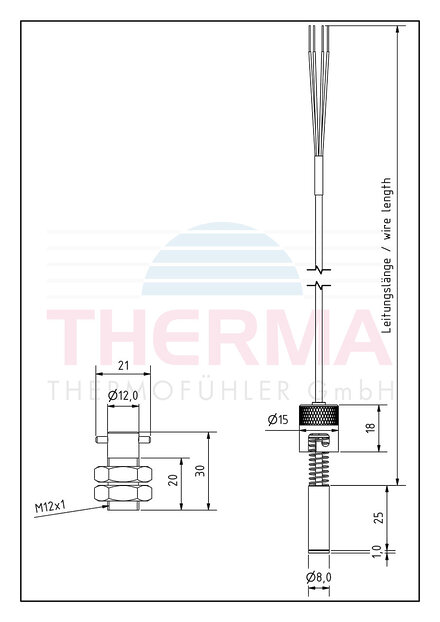

Measuring tip: Brass, Ø8mm x 1mm
Conductor: PFA-Teflon with Cu shielding
Conductor insulation: Teflon
Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Strand colour: white, red
Wire length: 500–5,000 mm
Type of connection: Selection
R ISO / 500VDC: >200 MOhm
Bayonet cap and spring: included
Mounting adapter M12x1: optional

Class	range of validity [°C]	Limiting deviation [°C]
B	-50 bis +300	±(0,3 + 0,005\|t\|)

Discount on large quantities on request

Additional information

Weight	0,06 kg
