Plug-in resistance thermometer | Teflon | Pt1000

Resistance: Pt1000
Temperature range: -50 °C to +260 °C continuous
Wire type: Teflon with CU shielding, Tmax: +260 °C continuous

Resistance *

Circuit type *

Diameter *

Wire length *

Connector *

Mounting adapter *

» individual request

Title	Range	Discount
Rabattstaffel 1	3 - 9	3% 26,09 €
Rabattstaffel 2	10 - 24	5% 25,56 €
Rabattstaffel 3	25 +	10% 24,21 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

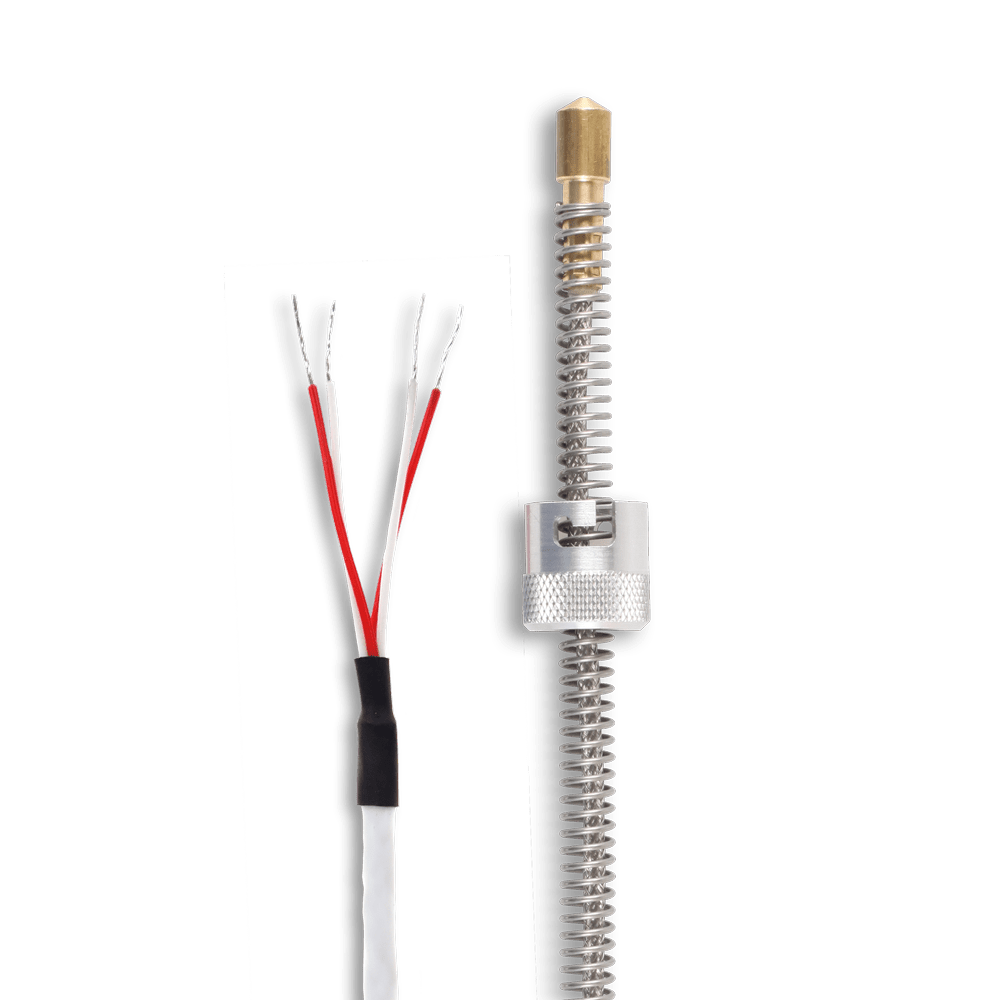

Plug-in resistance thermometer Pt1000

Plug-in RTD for measurment bottom temperature of bore, to use in plants or maschines. Fast and easy assembly and disassembly of the probe with a bayonet cennection. The installation length can be adjusted by rotating the cap on the spring.

Technical data

Measurement range: -50 °C to +260 °C
Electrical resistance: Pt1000
Tolerance: B / A or AA as per DIN EN 60751:2009-05
Circuit type: 2, 3 or 4-wire technique
Probe housing: Brass, 118°
Probe Ø: 6.0 x 10 or 8.0 x 10 mm
Bayonet cap: interior approx. Ø 12.5 mm or 14.5 mm
Positioning range: along the spring approx. 180 mm
Conductor: PFA-Teflon with CU shielding
Conductor insulation: Teflon
Conductor: Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Wire length: 500–5,000 mm
Connection: Selection
R ISO / 1000VDC: >200 MOhm
Measuring current: recommended 0,1mA, maximum 1 mA

Recommended bore diameter 6.4mm or 8.4mm.

Class	range of validity [°C]	Limiting deviation [°C]
AA	-50 bis +200	±(0,1 + 0,0017\|t\|)
A	-70 bis +300	±(0,15 + 0,002\|t\|)
B	-70 bis +550	±(0,3 + 0,005\|t\|)

Discount on large quantities on request

Additional information

Weight	0,2 kg
