Length 10 m
Technical data:

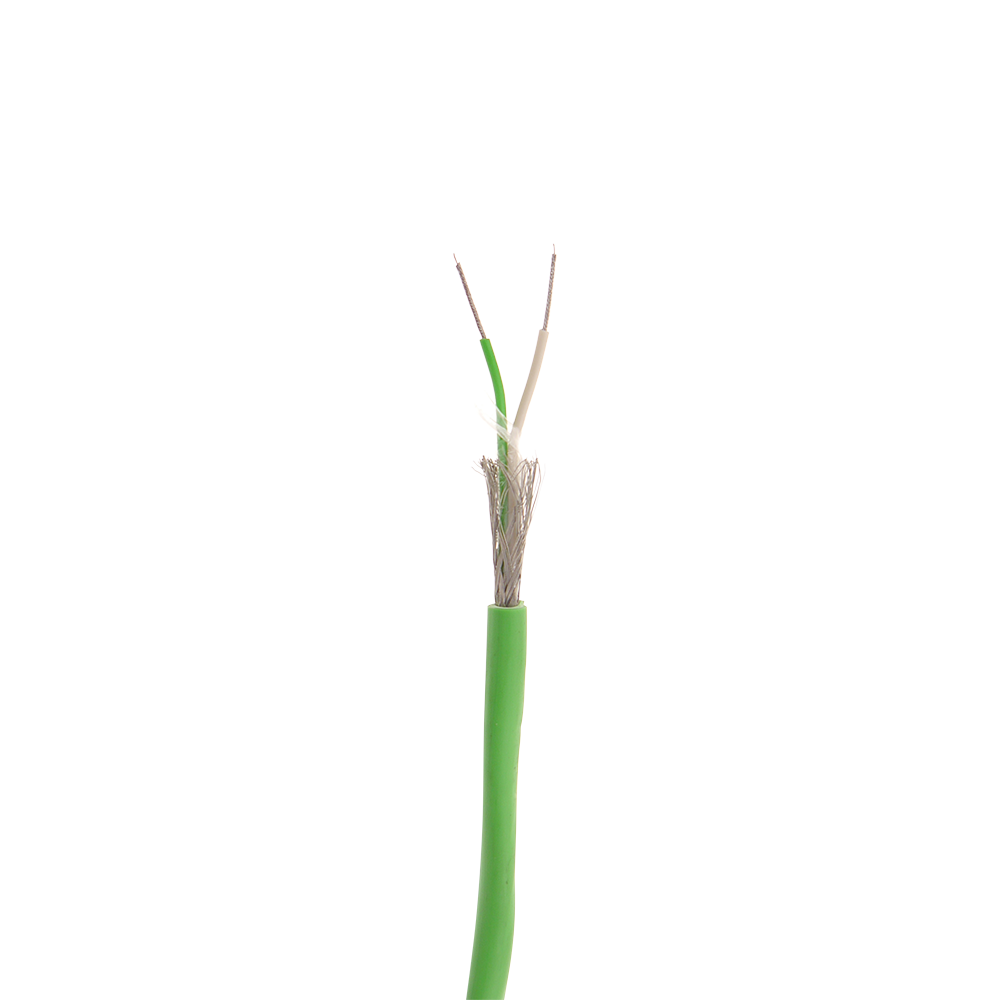

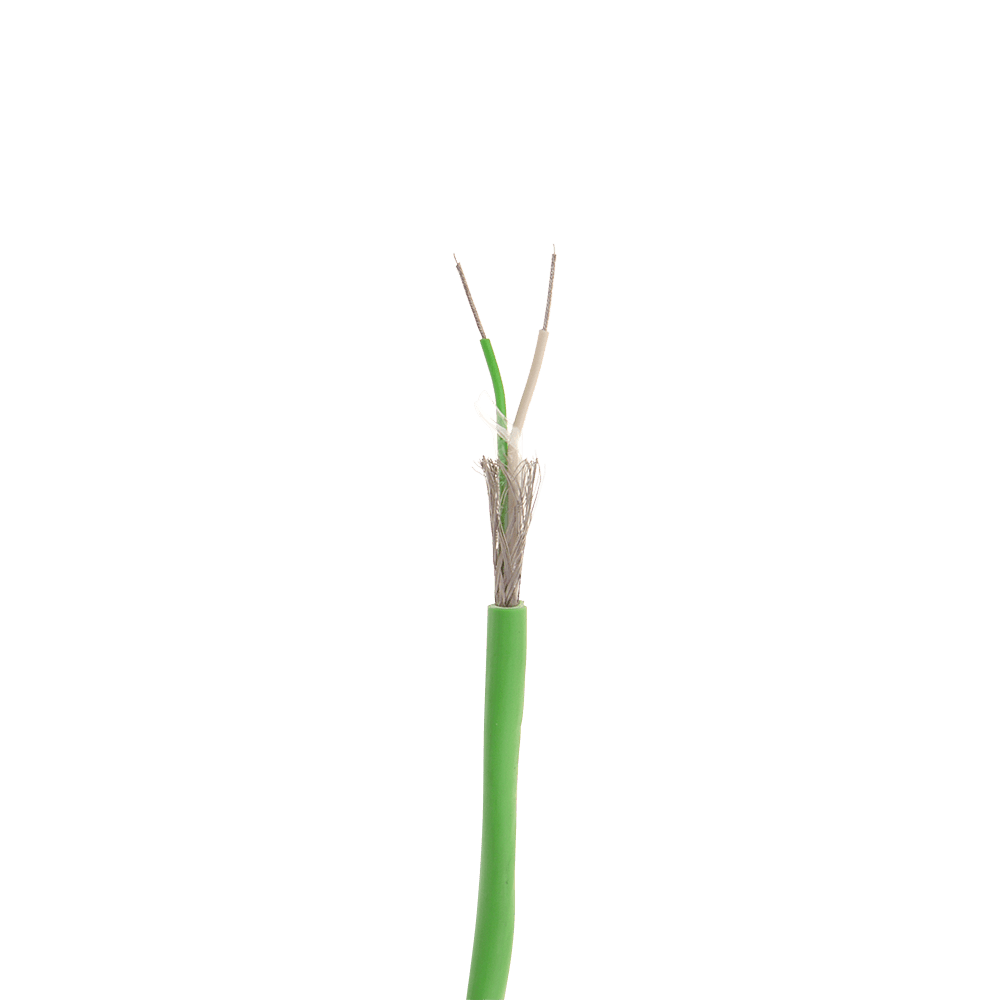

- Thermocouple combination: NiCr-Ni Type “K”, compensating wire
- Stranded conductor: stranded, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: PVC
- Conductor guide: stranded
- Braiding: Cu tin-plated
- Outer sheathing: PVC
- Operating temperature: -20 °C to +105 °C
- Outer dimension: approx. 4.5 mm round
- Sheathing colour: green
- Core colour: + = green, – = white
