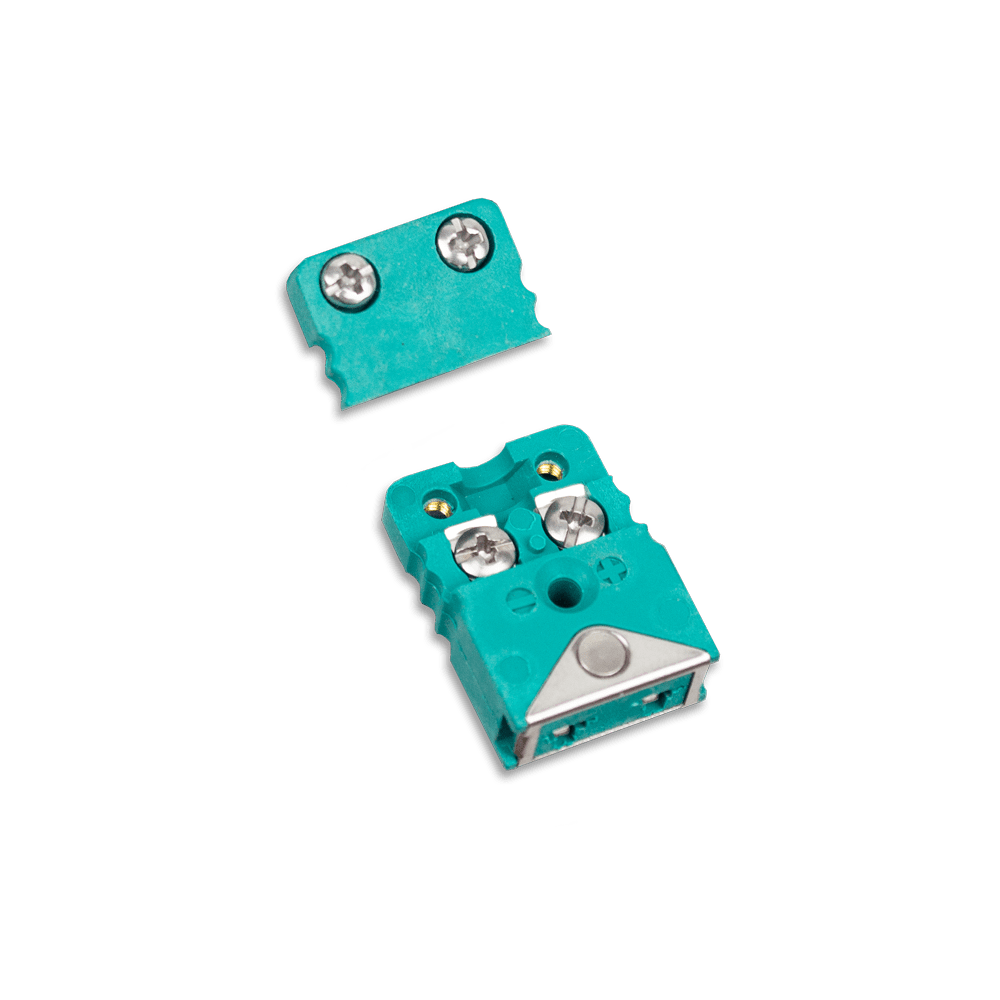

Coupling jack Miniature | Locking (CMLJ)

Use:
Connectors for thermocouples and resistance thermometer measurement circuits. Suitable for measurement with small wires and mineral-insulated metal sheathed cables.

Advantage:
Self locking connector pair for thermocouple and RTD circuits. Locking feature prevents unwanted disconnection due to vibration etc. Suited for small wires and mineral insulated cables.

Mechanical design:

• Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts.
• Polarized pins ensure proper connection.
• Easy wire connection through sandwich construction.
• Molded barriers prevent short circuit.
• Rugged one body design.
• Stainless Steel screws with Phillips head
• Stainless steel locking clip
• Locking Connector Miniature also fits on our partnumbers CMP and CMJ

Conductor diameter:

• Accepts wires up to 0,6 mm.
• Maximum cable diameter 4,5 mm.

Temperature rating:

• Max. +220 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S, B
• on request: Type C

Resistance themometer:

• for RTD use type U (Cu/Cu).

Colour designations:

• All international colour designations are available:
  DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.

Material-Code:

Discount on large quantities on request
