Wire RTD | NTC 10 kOhm

Resistance: NTC 10 kOhm
Circuit type: 2-wire technology
Measurement range: -55 °C to +260 °C

Wire length *

Connector *

Factory calibration (optional)
Would you like a calibration test? Select a maximum of 8 calibration points between -30°C and +650°C and enter the desired temperatures in the field below. Explanation

Select quantity of calibration points

Select quantity of calibration points
Please select the desired calibration points between -30°C and +650°C below:

C. point 1

C. point 2

C. point 3

C. point 4

C. point 5

C. point 6

C. point 7

C. point 8

Quantity	Price	Discount
3-9	15,91 €	3%
10-24	15,58 €	5%
25+	14,76 €	10%

Discount on large quantities on request

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

📄 Create your own offer PDF in the shopping cart

Description

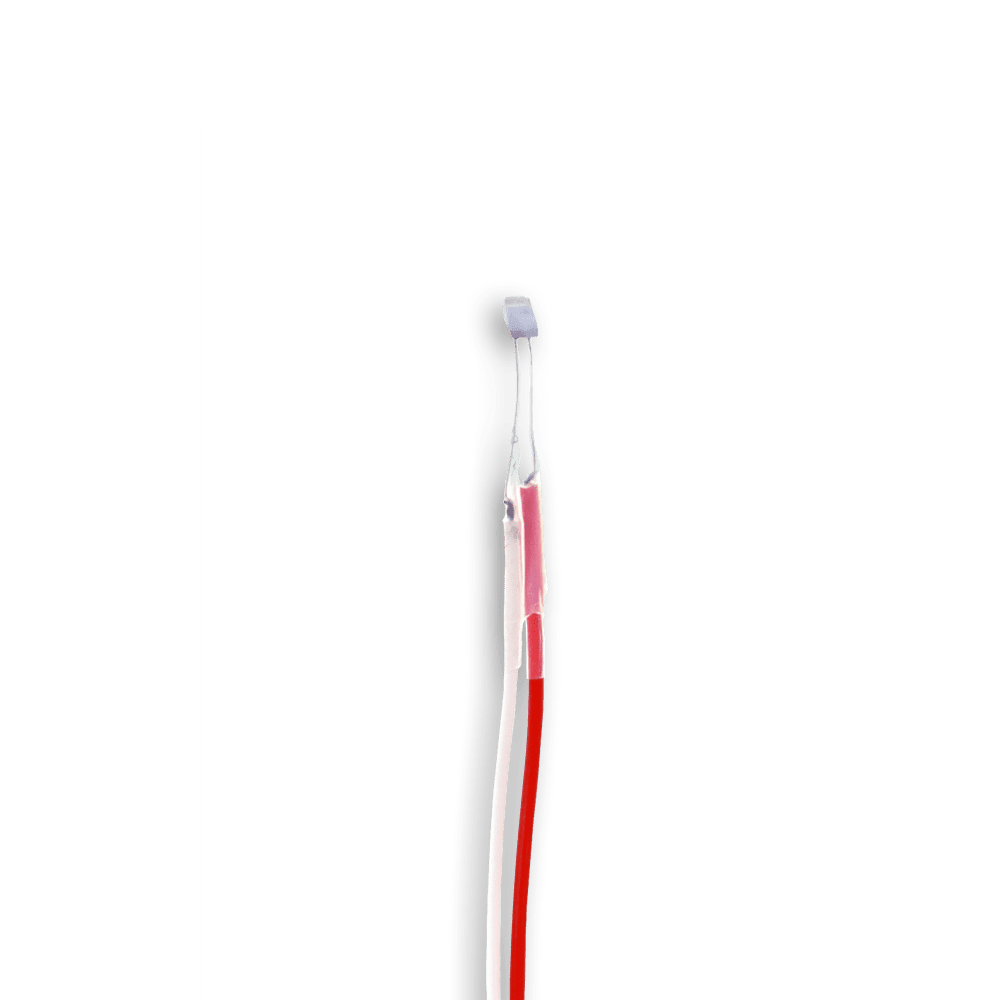

Inline resistance thermometer NTC 10 kOhm

Technical data

Measurement range: -55 °C to +260 °C
Electrical resistance: NTC 10 kOhm
Conductor:PTFE-Teflon
Conductor guide: open
Conductor:Strand, Cuvs, AWG 24F, 2 x 0.22 mm² (19 x 0.127 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
R ISO / 1000VDC: >200 MOhm

For protection the RTD is standardly covered with a PTFE-isolation.

Download table of resistance/temperature as PDF

Discount on large quantities on request

Additional information

Weight	0,06 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request
Fast and reliable service - Our customer service team is available to assist you with expert support
In-house technical development capabilities, including the ability to process and create CAD drawings and STEP files

Is your product not included?

Do you need an offer in advance? Do you need an individual solution? No problem: just give us a call and send us an email. Phone: +49 (0) 2266 / 487330-30 or E-Mail: info@therma-shop.de.
