Standard | Pt1000

Resistance: Pt1000
Circuit type: 2-wire technology
Measurement range: -50 °C to +260 °C

Resistance *

Diameter *

Element length *

Wire length *

Line type *

Connection *

Factory calibration (optional)

Would you like a calibration test? Select a maximum of 8 calibration points between -35°C and +660°C and enter the desired temperatures in the field below. Explanation

Select quantity of calibration points

Select calibration points

Depending on the quantity selected, please specify the calibration points between -35°C and +660°C separated by commas.

» individual request

Title	Range	Discount
Rabattstaffel 1	10 - 19	3% 14,65 €
Rabattstaffel 2	20 - 49	5% 14,35 €
Rabattstaffel 3	50 +	10% 13,59 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

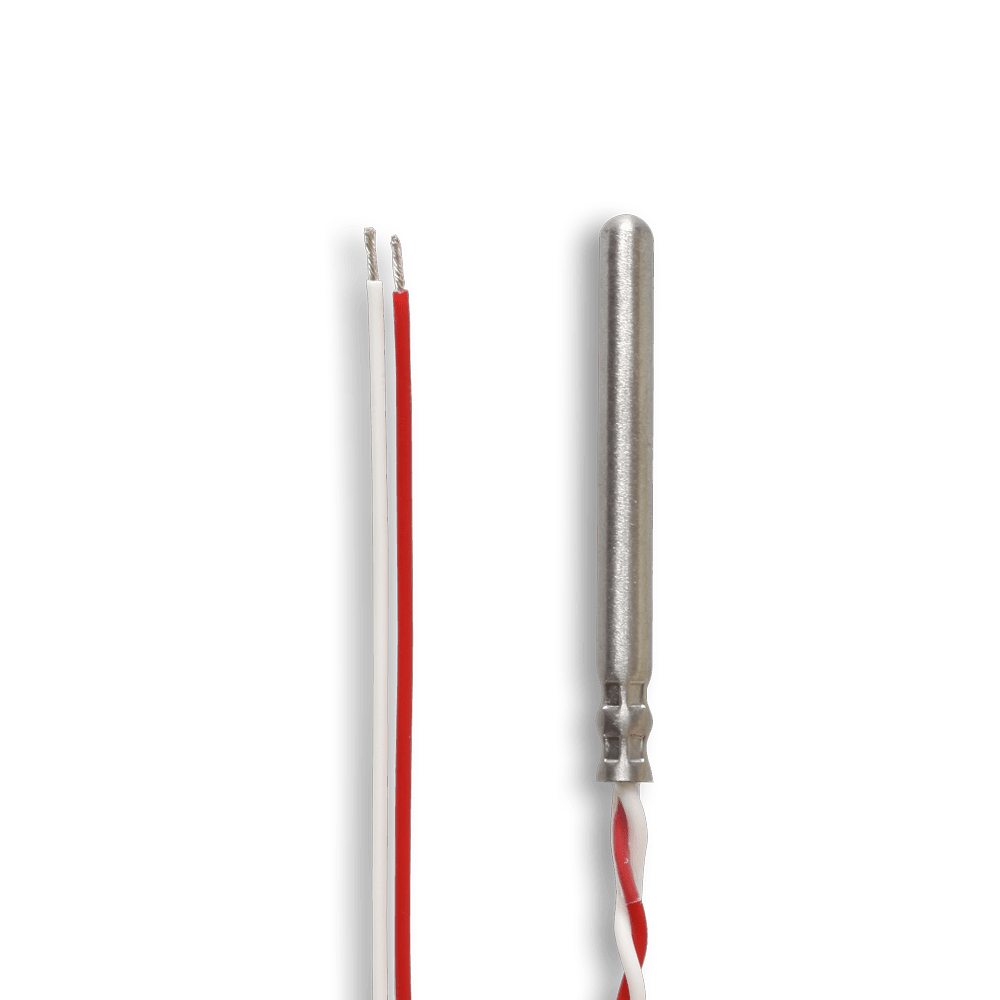

Standard resistance thermometer Pt1000

Technical data

Measurement range: -50 °C to +260 °C
Electrical resistance: Pt1000
Tolerance:B / A or AA as per DIN IEC 751
Probe Ø: 3.0–4.0 mm
Probe length: 30–100 mm
Conductor:PTFE-Teflon
Cable guide: open
Conductor:Strand, Cuvs, AWG 24F, 2 x 0.241 mm² (19 x 0.127)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
R ISO / 500-1000VDC: >200 MOhm

Discount on large quantities on request

Additional information

Weight	0,08 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 343 Categories: Resistance thermometers, Sheating tube resistance thermometer, Water temperature sensor

Is your product not included?

Do you need an offer in advance? Do you need an individual solution? No problem: just give us a call and send us an email. Phone: +49 (0) 2266 / 487330-30 or E-Mail: info@therma-shop.de.
