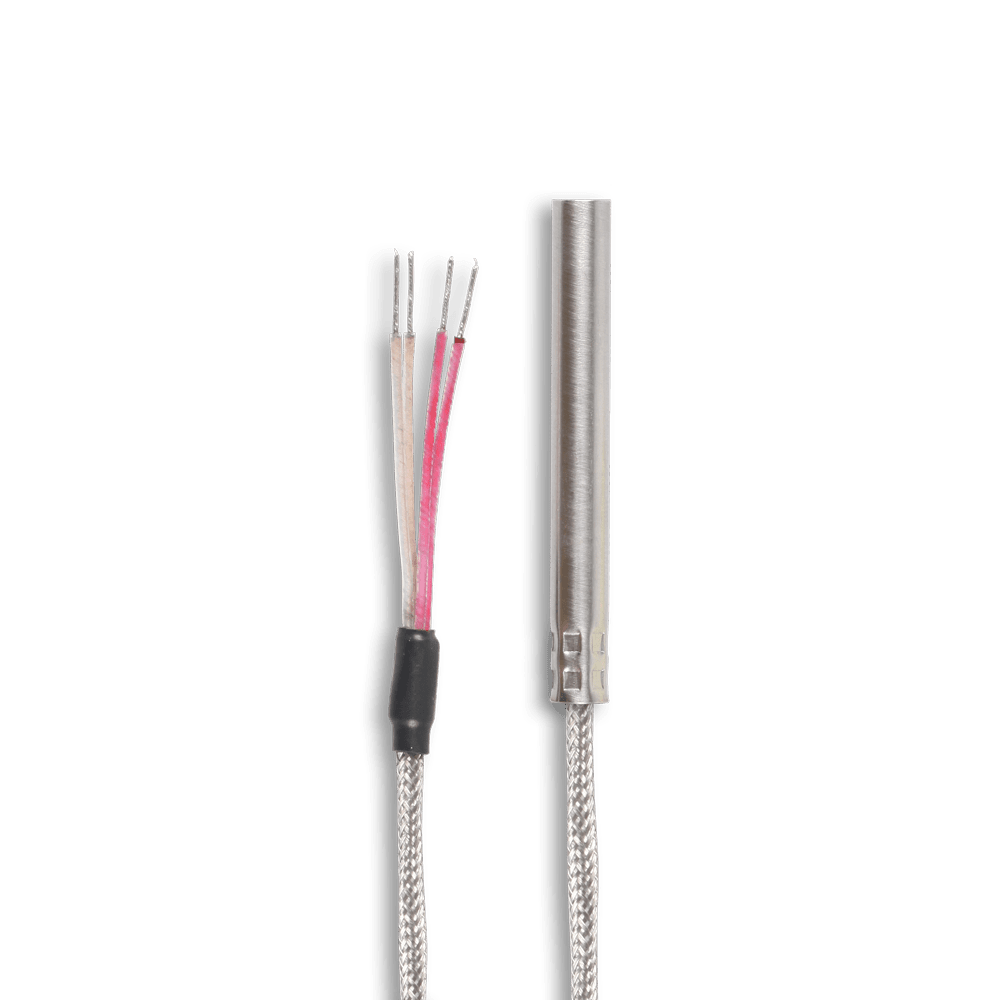

Sheathing tube | Fibreglass | Pt100

Resistance: Pt100
Temperature range: -50 °C to +450 °C continuous
Wire type: Fibreglass with VA braid, Tmax: +350 °C

Resistance *

Circuit type *

Diameter *

Element length *

Wire length *

Connector *

Factory calibration (optional)

Would you like a calibration test? Select a maximum of 8 calibration points between -35°C and +660°C and enter the desired temperatures in the field below. Explanation

Select quantity of calibration points

Select calibration points

Depending on the quantity selected, please specify the calibration points between -35°C and +660°C separated by commas.

» individual request

Title	Range	Discount
Rabattstaffel 1	3 - 9	3% 20,90 €
Rabattstaffel 2	10 - 24	5% 20,47 €
Rabattstaffel 3	25 +	10% 19,40 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Sheathing tube resistance thermometer Pt100

Rigid sheath design

Technical data

Measurement range: -50 °C to +450 °C
Electrical resistance: Pt100
Tolerance:B / A or AA as per DIN EN 60751:2009-05
Circuit type:2, 3 or 4-wire technique
Sheathing material: Stainless Steel
Probe Ø: 4.0–8.0 mm
Probe length: 40–300 mm
Conductor: Fibreglass with VA braid
Conductor insulation: Fibreglass
Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
Measuring current: recommended 1,0mA, maximum 7 mA
R ISO / 500VDC: >200 MOhm

Class	range of validity [°C]	Limiting deviation [°C]
AA	-50 bis +200	±(0,1 + 0,0017\|t\|)
A	-70 bis +300	±(0,15 + 0,002\|t\|)
B	-70 bis +550	±(0,3 + 0,005\|t\|)

Discount on large quantities on request

Additional information

Weight	0,14 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 212 Categories: Resistance thermometers, Sheating tube resistance thermometer
