Sheathing tube | Fibreglass | Ni120
- Resistance: Ni120
- Temperature range: -50 °C to +260°C
- Wire type: Fibreglass with VA braid, Tmax: +350 °C
| Quantity | Price | Discount |
|---|---|---|
| 3-9 | 26,24 € | 3% |
| 10-24 | 25,70 € | 5% |
| 25+ | 24,35 € | 10% |
Discount on large quantities on request
Sales only to companies, traders and institutions.
We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.
📄 Create your own offer PDF in the shopping cart
Description

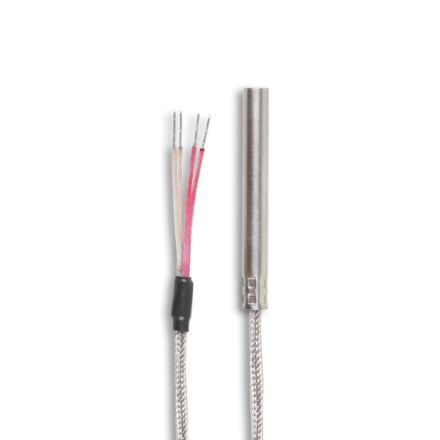

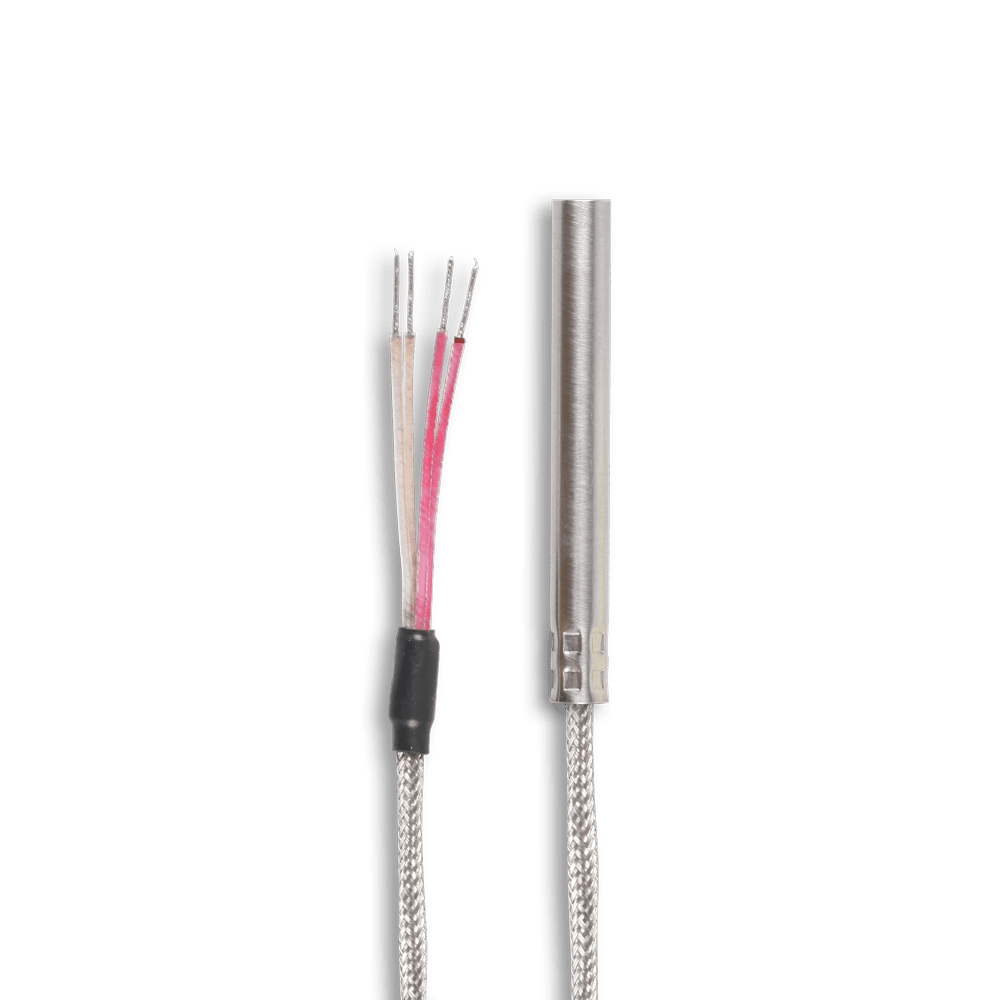

Sheathing tube resistance thermometer Ni120
- Rigid sheath design
Technical data
- Measurement range: -50 °C to +260 °C (short-time +300°C)
- Electrical resistance: 120 Ω at 0°C (±0,28Ω)
- Temperature coefficient: ANSI, 6720 ppm/K (+0/-75 ppm/K)
- Circuit type:2, 3 or 4-wire technique
- Sheathing material: Stainless Steel
- Probe Ø: 4.0–8.0 mm
- Probe length: 40–300 mm
- Conductor: Fibreglass with VA braid
- Conductor insulation: Fibreglass
- Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
- Strand colour:white, red
- Wire length: 500–5,000 mm
- Type of connection: Selection
- Measuring current: recommended 0,3mA, maximum 1 mA
- R ISO / 1000VDC: >200 MOhm
Discount on large quantities on request
Additional information
| Weight | 0,18 kg |
|---|
Individual product inquiry
Do you need a similar product or have a special product request?
We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:
Your advantages with us for over 30 years
- Entire production made in Germany (100% handmade)
- German specialists (Employees have mostly been with the family business since it was founded)
- High quality and maximum of durability (high quality materials, better and experienced manufacturing)
- Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
- Buy sensors & probes online including configuration + further scale of discounts on request
- Fast and reliable service - Our customer service team is available to assist you with expert support
- In-house technical development capabilities, including the ability to process and create CAD drawings and STEP files
