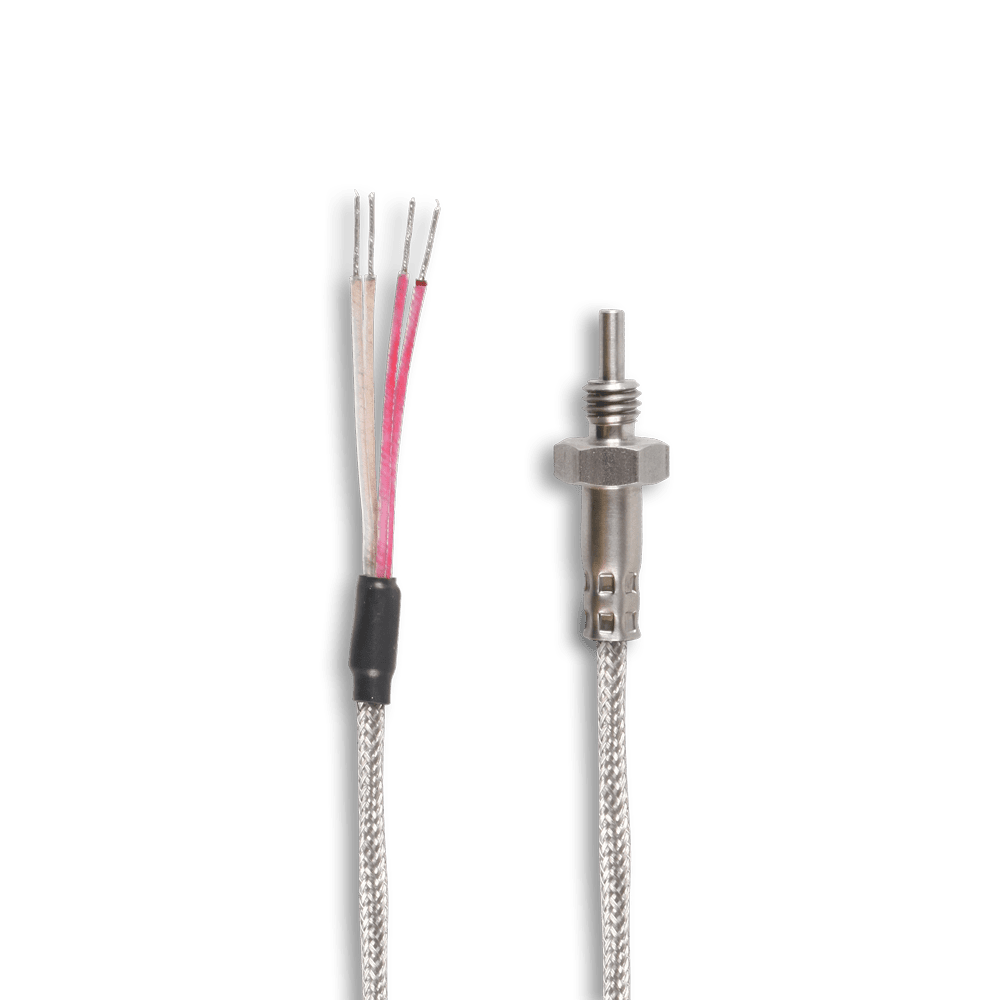

Screw-in RTD| Fibreglass | Pt1000

Resistance: Pt1000
Thread: M6
Temperature range: -50 °C to +550 °C continuous
Wire type: Fibreglass with VA braid, Tmax: +350 °C

Title	Range	Discount
Rabattstaffel 1	3 - 9	3% 33,56 €
Rabattstaffel 2	10 - 24	5% 32,87 €
Rabattstaffel 3	25 +	10% 31,14 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Screw-in resistance thermometer Pt1000

Screw-in RTD for measurment of fluid or gas temperature, to use in plants, maschines or vehicles.

Technical data

Measurement range: -50 °C to +450 °C
Electrical resistance: Pt1000
Tolerance:B / A or AA as per DIN EN 60751:2009-05
Circuit type: 2, 3 or 4-wire technique
Sheathing material: Stainless Steel
Probe Ø: 2.5 x 7 mm
Installation length: 13 mm
Thread: M6
Conductor:Fibreglass with VA braid
Conductor insulation: Fibreglass
Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
Measuring current: recommended 0,1mA, maximum 1 mA
R ISO / 500VDC: >200 MOhm

Class	range of validity [°C]	Limiting deviation [°C]
AA	-50 bis +200	±(0,1 + 0,0017\|t\|)
A	-70 bis +300	±(0,15 + 0,002\|t\|)
B	-70 bis +550	±(0,3 + 0,005\|t\|)

Discount on large quantities on request

Additional information

Weight	0,14 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 347 Categories: Resistance thermometers, Screw-in resistance thermometer, Water temperature sensor
