THK – Thermocouple Amplifier

THK 200
THK 400

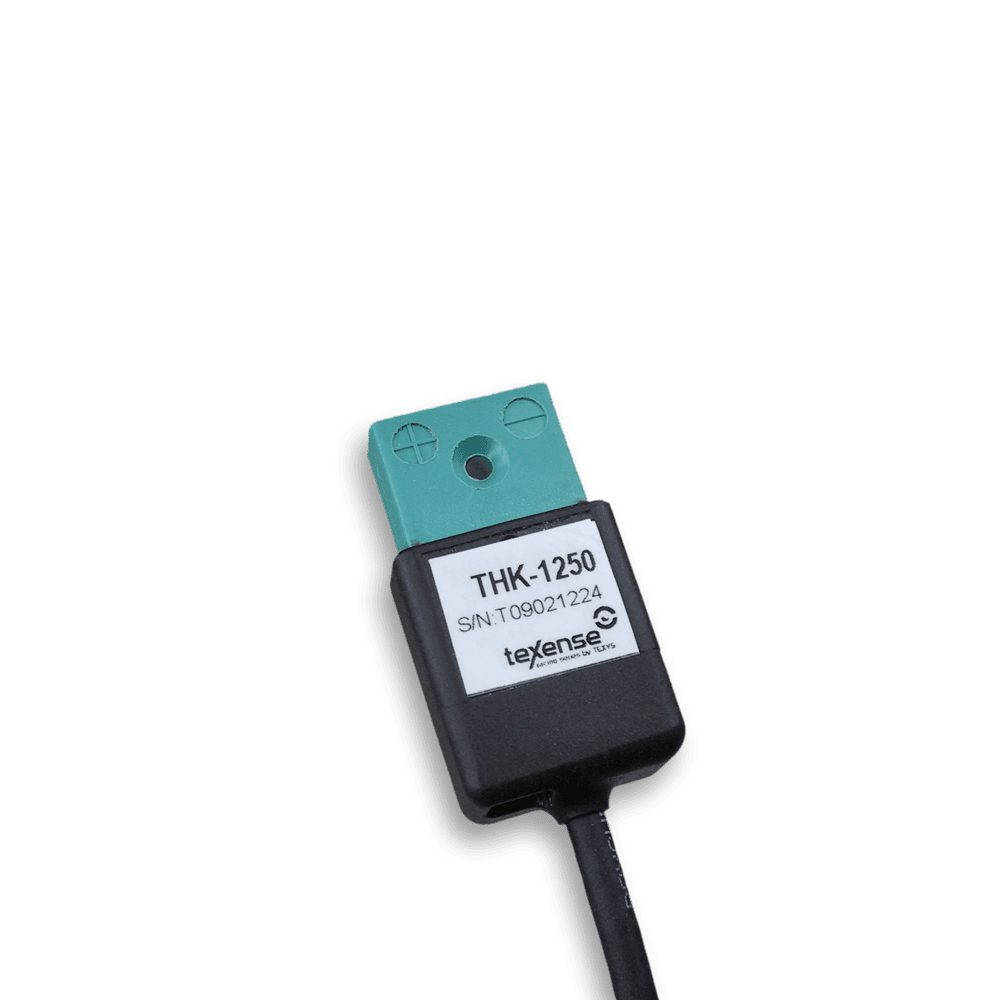

THK 1250

Compatible with any thermocouple probe type K fitted with a miniature plug. The thermocouple probe wires must be isolated from supply ground.

Range:

• THK 200: -50 to 200 °C
• THK 400: -100 to 400 °C
• THK 1250: 0 to 1250 °C

Sensitivity:

• THK 200: 20 mV/°C
• THK 400: 10 mV/°C
• THK 1250: 4 mV/°C

More technical Details (for THK 200, 400, 1250):

• Pet housing
• Dimensions : 37 x 20 x 10 mm
• Weight : 15 g
• Thermocouple: Type K
• Accuracy: +/- 2 % FS
• Response time: 200 ms
• Supply Voltage: 5 to 16 V
• Supply current 1,5 mA
• Output Voltage : 0 to 5 V
• Calibrator Fluke 714
• Protection IP53
• Vibration test 20Gpp 5’
• Shock 1000 G
• Operating Temp 0 to +80°C
• Storage Temp -40 to +125°C
• Connection : 1 metre of 3 x AWG 26 PTFE shielded cable

Standard connections:

• Red: Supply (5 to 16 V)
• White: Output signal
• Blue: GND (0 V)
