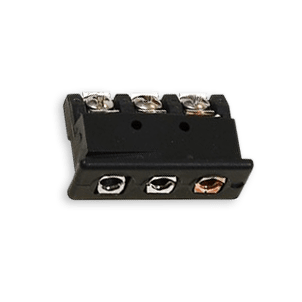

Panel Standard Insert Three-pin High-temperature (PSITH)

Use:
Panel insert for thermocouple and RTD circuits. The special plastic used allows high working temperatures. Third connection for ground or continuous shield connection or for three wire RTD´s.

Mechanical design:

• Housing of fibreglass-filled plastic.
• Contacts of original thermocouple materials
• Spring-loaded sockets.
• Reverse polarity protection by different pin thicknesses.
• Moulded barriers prevent short-circuits.
• Screw terminals enable quick connection.
• Polarity designation next to the connection screws.

Conductor diameter:

• Accepts wires up to 1,6 mm.

Temperature load:

• Max. +350 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S, B
• on request: Type C

Colour designations:

• The housing colour is brown with a colour dot.

Material-Code:

Discount on large quantities on request
