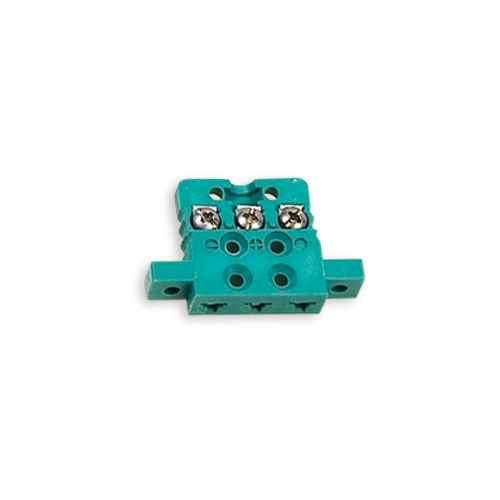

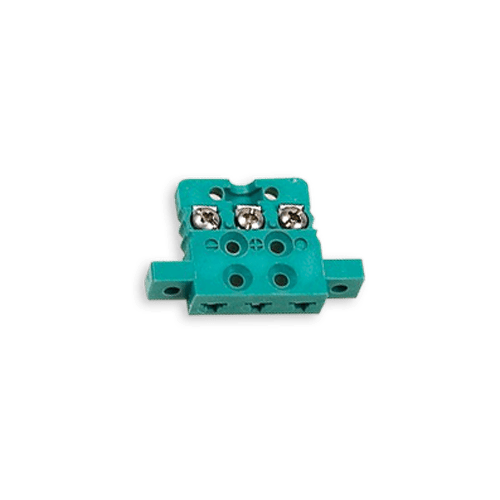

Panel Miniature Insert Three-pin Lugged (PMITL)

Use:
Panel insert for thermocouple and RTD circuits. Suited for wires and mineral insulated cable. Third connection for ground or continuous shield or for three wire RTD’s. Can be mounted in a single circuit version or in rows in customer panel.
Mounting by means of two M 2,5 screws.

Mechanical design:

• Glass filled thermoplastic body
• Contacts of original thermocouple materials.
• Spring-loaded sockets.
• Reverse polarity protection by different contact pin widths.
• Moulded barriers prevent short-circuits.
• Screw terminals enable quick connection.
• Polarity indication on body.
• Stainless steel screws

Panel cut-out:

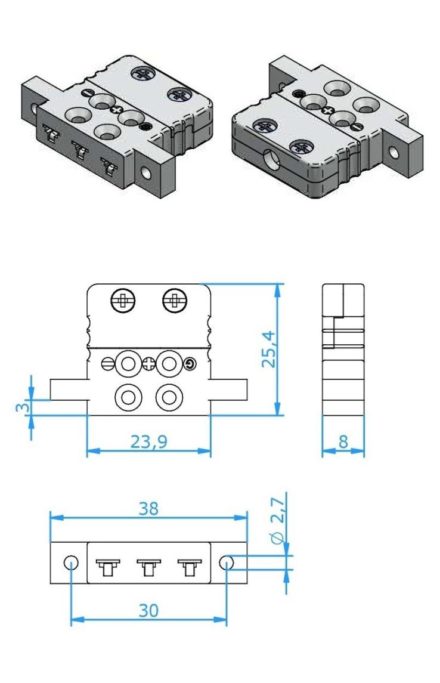

• 8,1 x 24 mm; Panel thickness : 3,0 mm

Conductor diameter:

• Accepts wires up to 0,6 mm.
• Max. cable diameter 4.5 mm.

Temperature load:

• Max. +220 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S, B
• on request: Type C

Colour designations:

• All international colour designations are available
  DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.

Material-Code:

Discount on large quantities on request
