Startseite » Shop » Motor sports » Sensors for fluids » Screw-in resistance thermometer
Exhaust gas sensor sheathing thermocouple 46,50 €
Back to products
Heat protection sleeve – TEXTALU® E 6,15 €
Click to enlarge

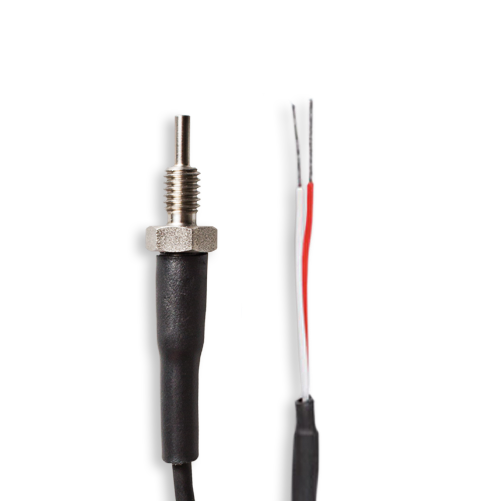

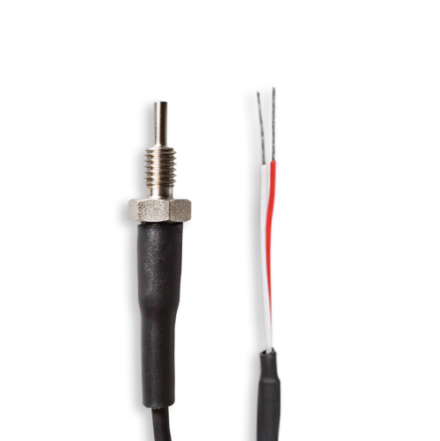

Screw-in resistance thermometer

  • Fast response time
  • Measurement range: -50 °C to +260 °C

Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Exhaust gas temperature sensors
    • Water temperature sensor
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

MSW-20328

The versatile Therma resistance thermometers convince with their precise measurement of fluids in the vehicle. They are optionally available with M6, M5 or M4 male threads. The technical equipment of the resistance sensor offers additional options. It is available as Pt100 or Pt1000, in Class A or optionally also as NTC 10 KΩ. This versatility ensures compatibility with motor sports products and controllers from Bosch.

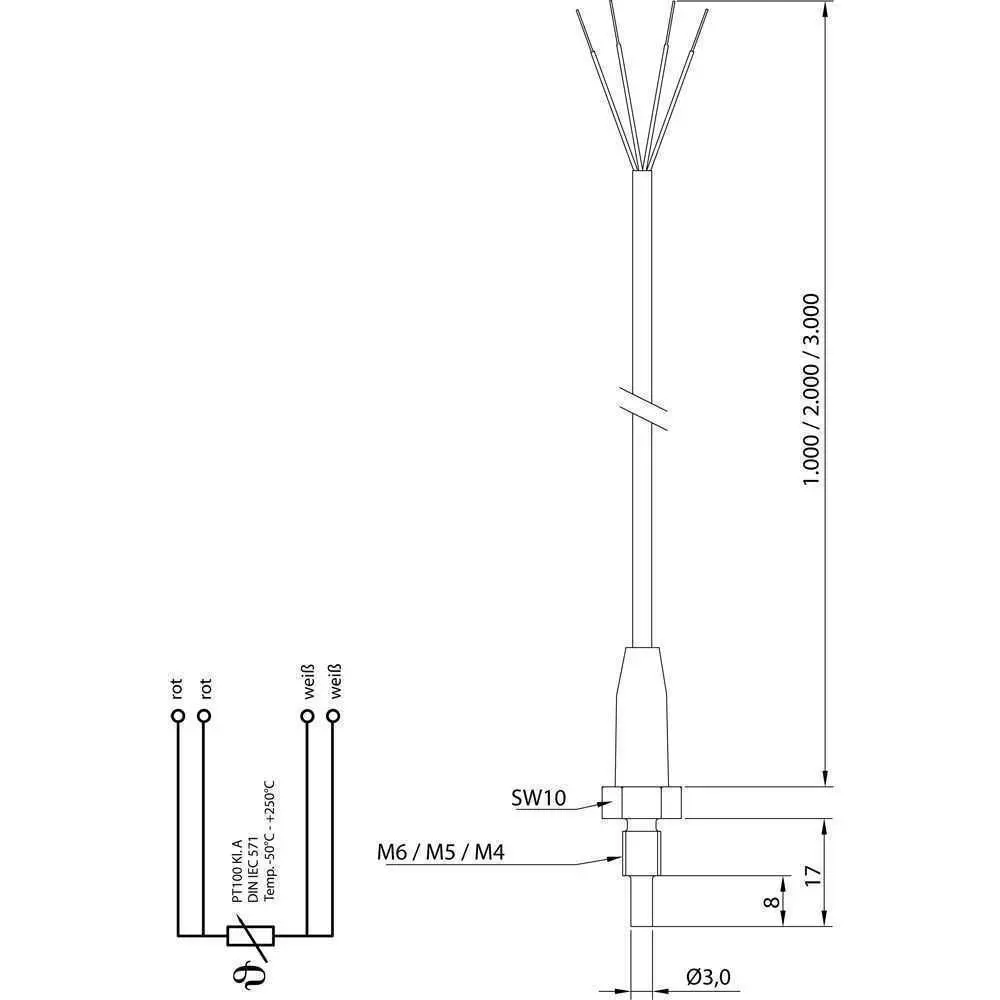

Technical data:­­

  • Screw-in resistance thermometer as Pt100 or Pt1000 or NTC 10KOhm
  • Circuit type:
    • Pt100: 4-wire technique
    • Pt1000, NTC: 2-wire technique
  • Sensor diameter: 3.0 mm
  • Sensor housing: Stainless steel
  • Male thread: M6, M5 or M4
  • Installation length: 17 mm
  • Line length: 1,000 mm, 2,000 mm or 3,000 mm
  • Line type with Pt100: PFA-Teflon with Cu-shield
  • Conductor: Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
  • Temperature range of the line: up to 205 °C in continuous duty, 230 °C peak
  • Connection: free ends
  • Measurement range: -50 °C to +260 °C

Pt100, Pt1000

Class
range of validity [°C]
Limiting deviation [°C]
A -70 bis +300 ±(0,15 + 0,002|t|)

NTC 10kOhm

Download table of resistance/temperature as PDF

Additional information
Weight 0,08 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 127 Categories: Motor sports, Sensors for fluids, Water temperature sensor

You may also like…

Select options

Digital thermometer for NiCr-Ni, Pt100 or Pt1000

59,80 €
Select options

Teflon with shield | 4 x 26F-Cuvn | Ø3,1mm | +260°C

3,65 €

Related products

Select options

Screw-in RTD| Fibreglass | Pt1000

34,60 €
Select options

Screw-in thermocouple | Fibreglass | Type J

30,53 €
Add to cart

Compression type fittings for sheathing thermocouples

13,10 €
Select options

Screw-in RTD | Teflon | Pt1000

34,15 €
Select options

Infrared tyre sensor

520,00 €
Select options

Plug-in thermocouple with cap nut

90,00 €
Select options

Screw-in RTD | Fibreglass | Ni120

39,10 €
Select options

Screw-in thermocouple | Silicone | Type N

31,74 €
Add to cart

Mounting adapter

14,00 €
Select options

Screw-in thermocouple | Teflon | Type N |

32,29 €
Select options

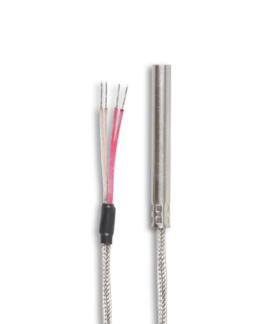

Sheathing tube | Teflon | NTC 10 kOhm
