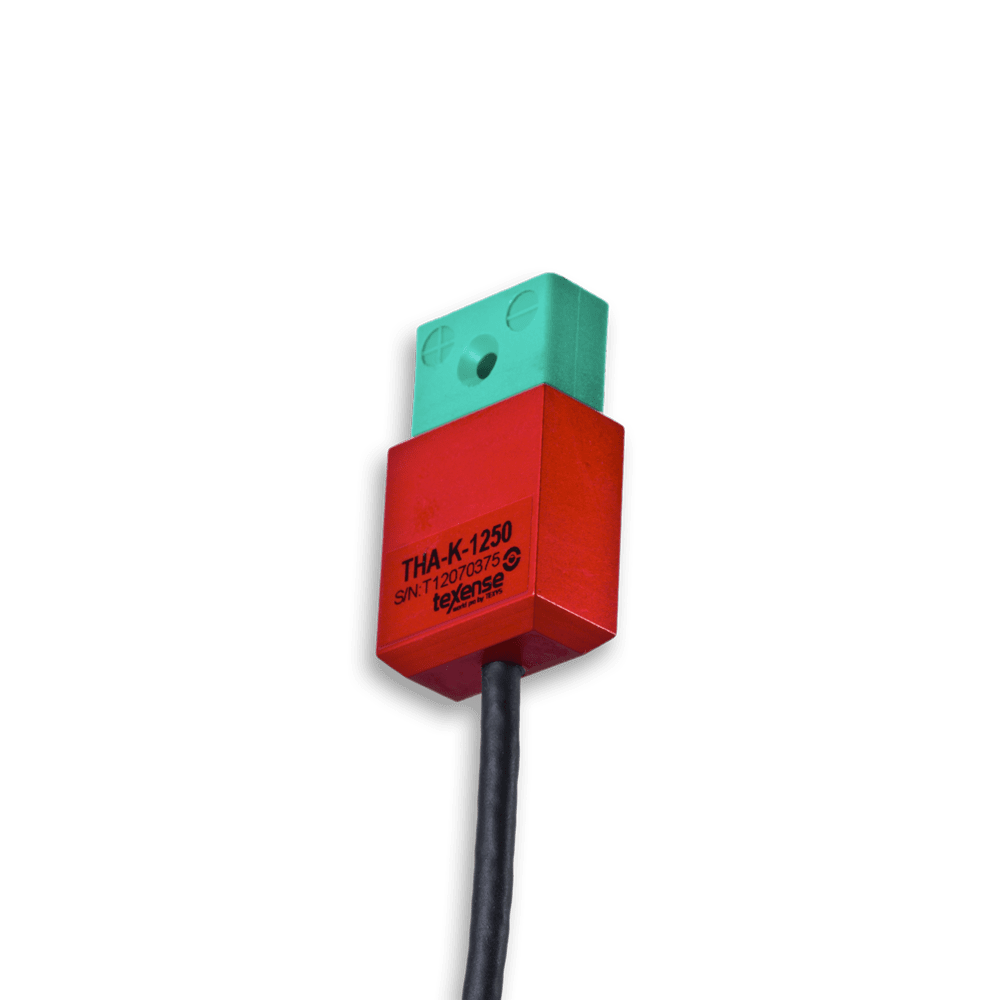

THA – Thermocouple Connector Conditionner
- Vibration-proof
- suitable for miniature thermocouple plug
- for thermocouple type K, J or T
Discount on large quantities on request
Sales only to companies, traders and institutions.
We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.
📄 Create your own offer PDF in the shopping cart
Description
THA 200
THA 400
THA 1000
THA 1250
Compatible with any thermocouple probe type K, J or T (selection) fitted with a miniature plug. The thermocouple probe wires must be isolated from supply ground.
Temperature range:
- THA 200: -50 bis 200 °C
- THA 400: -100 bis 400 °C
- THA 1000: 0 bis 1.000 °C
- THA 1250: 0 bis 1.250 °C
Sensitivity:
- THA 200: 20 mV/°C
- THA 400: 10 mV/°C
- THA 1.000: 5 mV/°C
- THA 1250: 4 mV/°C
Technical data:
- Range: From -20 – +120 °C To 0 – +1250 °C
- Type: K, J, T, …
- Cold junction error: 1 °C
- Accuracy (Range < 1000 °C): 0.5 %FS
- Accuracy (Range > 1000 °C): 1 %FS
- Drift vs. Ambient Temperature: 0.5 °C
- Sensitivity Linear See calibration table: mV/°C
- Supply Voltage: 5 to 16 V
- Supply Current: 2 mA
- Output Voltage: 0–5 V
- Output Impedance: 47 Ω
- Calibrator: Fluke 714
- Dimension: 32,5 x 19 x 10 mm
- Material: Aluminium
- Weight: 15 g
- Protection: IP53
- Vibration test: 20Gpp5’
- Shock: 500 G
- Operating Temp: 0 to +100 °C
- Storage Temp: -40 to + 125 °C
| Target °C | -50 to +200 °C 20 mV/°C |
-100 to +400 °C 10 mV/°C |
0 to +1000 °C 5 mV/°C |
0 to +1250 °C 4 mV/°C |
|---|---|---|---|---|
| -100 | 0.00 | |||
| -50 | 0.00 | 0.50 | ||
| 0 | 1.00 | 1.00 | 0.00 | 0.00 |
| 50 | 2.00 | 1.50 | 0.25 | 0.20 |
| 100 | 3.00 | 2.00 | 0.50 | 0.40 |
| 150 | 4.00 | 2.50 | 0.75 | 0.60 |
| 200 | 5.00 | 3.00 | 1.00 | 0.80 |
| 300 | 4.00 | 1.50 | 1.20 | |
| 400 | 5.00 | 2.00 | 1.60 | |
| 600 | 3.00 | 2.40 | ||
| 800 | 4.00 | 3.20 | ||
| 1000 | 5.00 | 4.00 | ||
| 1250 | 5.00 |
Additional information
| Weight | 0,05 kg |
|---|
