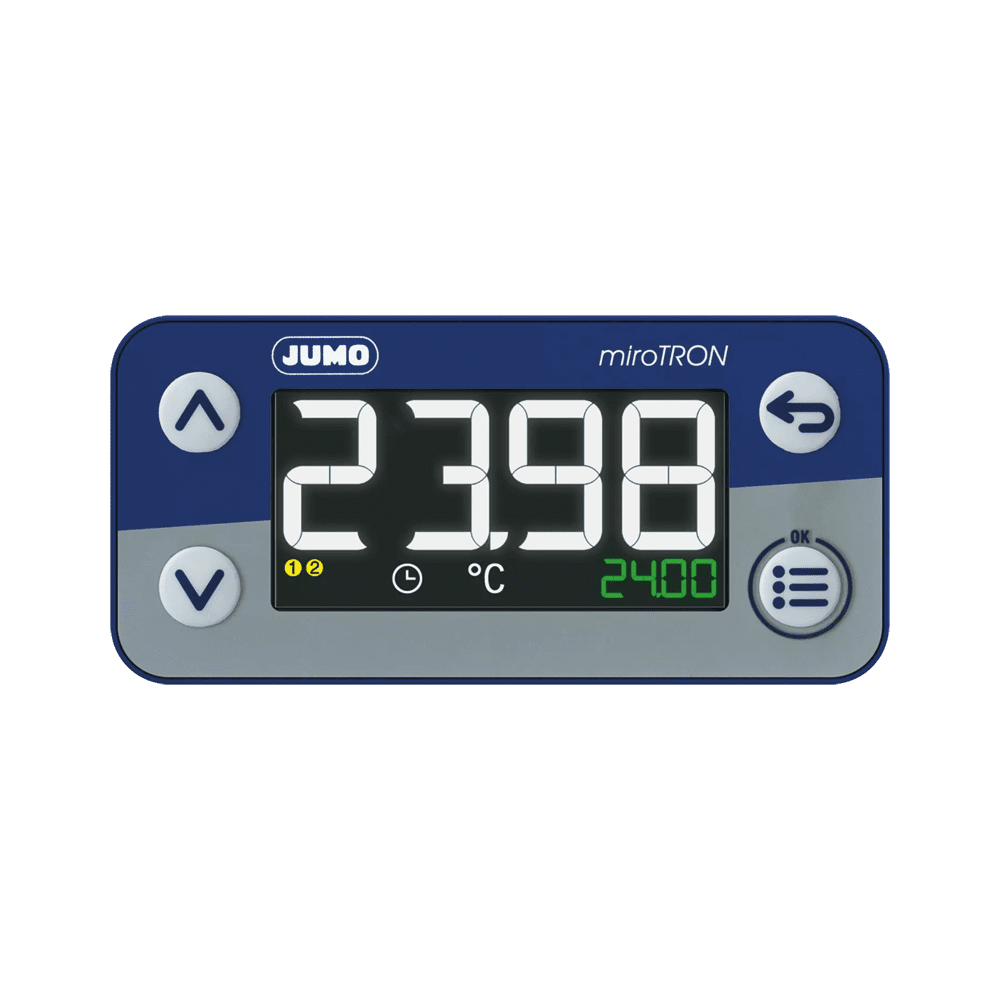

Thermostat – Jumo miroTRON

Electronic thermostat with optional PID two-state controller function

• Two-state controller with autotuning (option)
• Integrated timer function
• Service and operating hours counter
• Fast wiring through PUSH IN technology
• High-quality display and intuitive operation
• Configuration on the device or with the setup program (accessories) via USB interface (USB-powered)
• Operator guidance with text support in 4 languages
• 2 relay outputs
• Limit value monitoring function

Description

The JUMO miroTRON − as a digital electronic thermostat with optional PID two-state controller function − is suitable for flexible use in applications with simple temperature control. This device has measurement inputs for RTD temperature probes, thermocouples, or standard signals. It offers an alternative solution for mechanical dial thermometers or contact dial thermometer.

technical details

• Measurement inputs: RTD temperature probes, thermocouples
• Outputs: 1 relay (changeover AC 250 V, 10 A) and 1 relay (NO contact AC 250 V, 5 A)
• Voltage supply: AC 230 V, +10/-15 %, 48 to 63 Hz
• Format: 76x36x62 mm
• Approvals: UL


download datasheet (PDF)                 download operationg instructions (PDF)

Discount on large quantities or other versions on request
