Data logger temperature | 2-channels | Pt100

Data logger for two external thermocouples

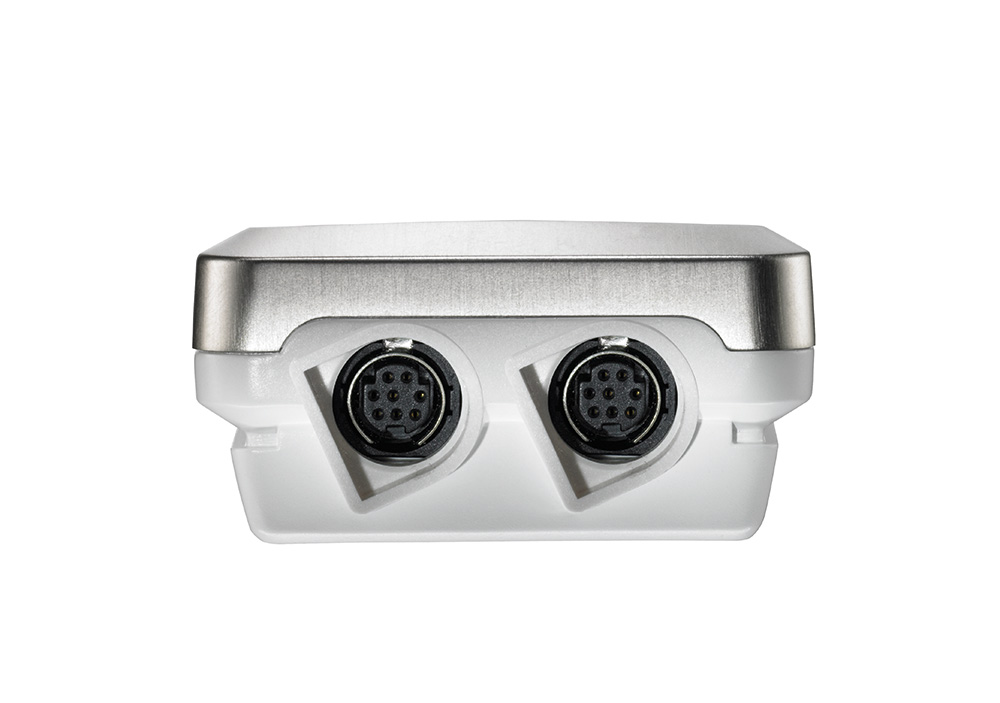

• Connection 2 x Mini-DIN plug (8-pins)

Pt100

• Measuring range: -100 … +400 °C
• Accuracy ±1 digit: ±0.2 °C (-100 … +200 °C); ±0.3 °C (+200.1 … +400 °C)
• Resolution: 0.01°C

Benefits

• Large, easily legible display
• High data security
• Measurement data memory for 2 million measurement values
• Up to 8 years’ battery life
• Data transfer via USB cable or SD card
• Two external sensor connections (2x pt100)

Description

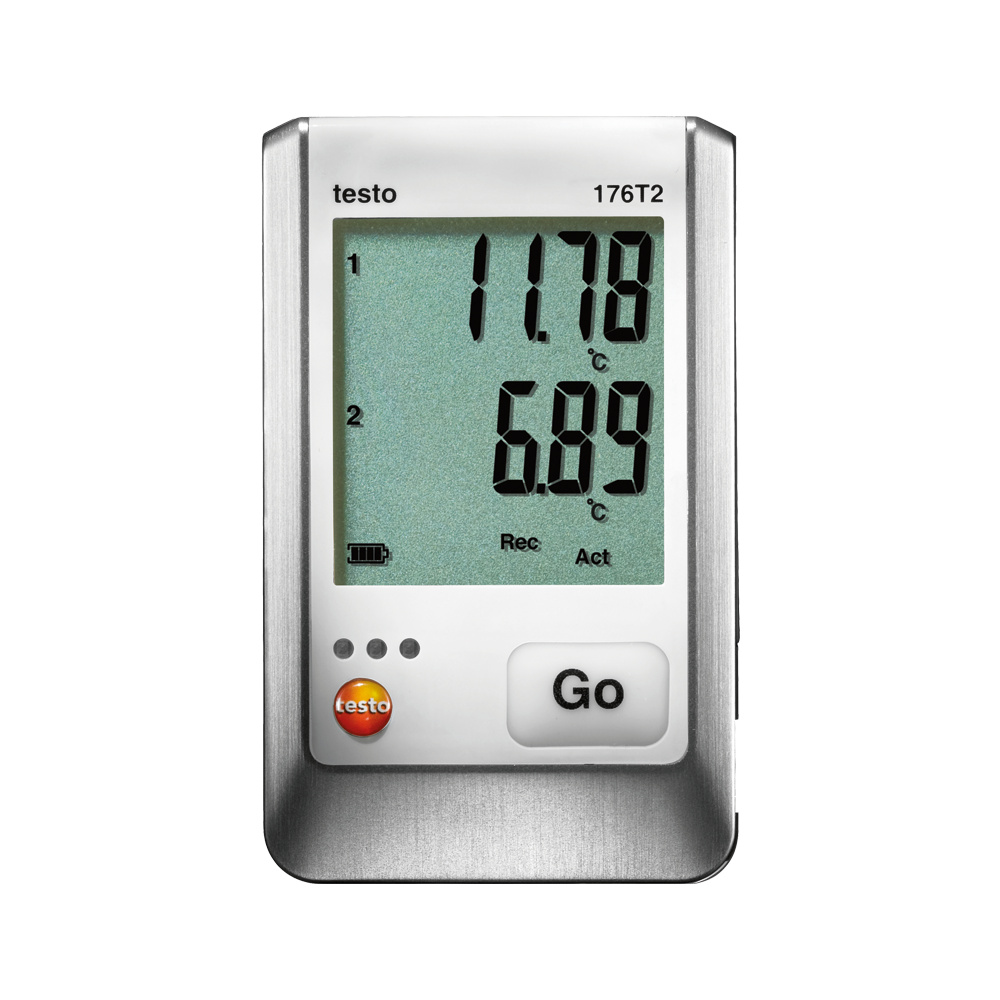

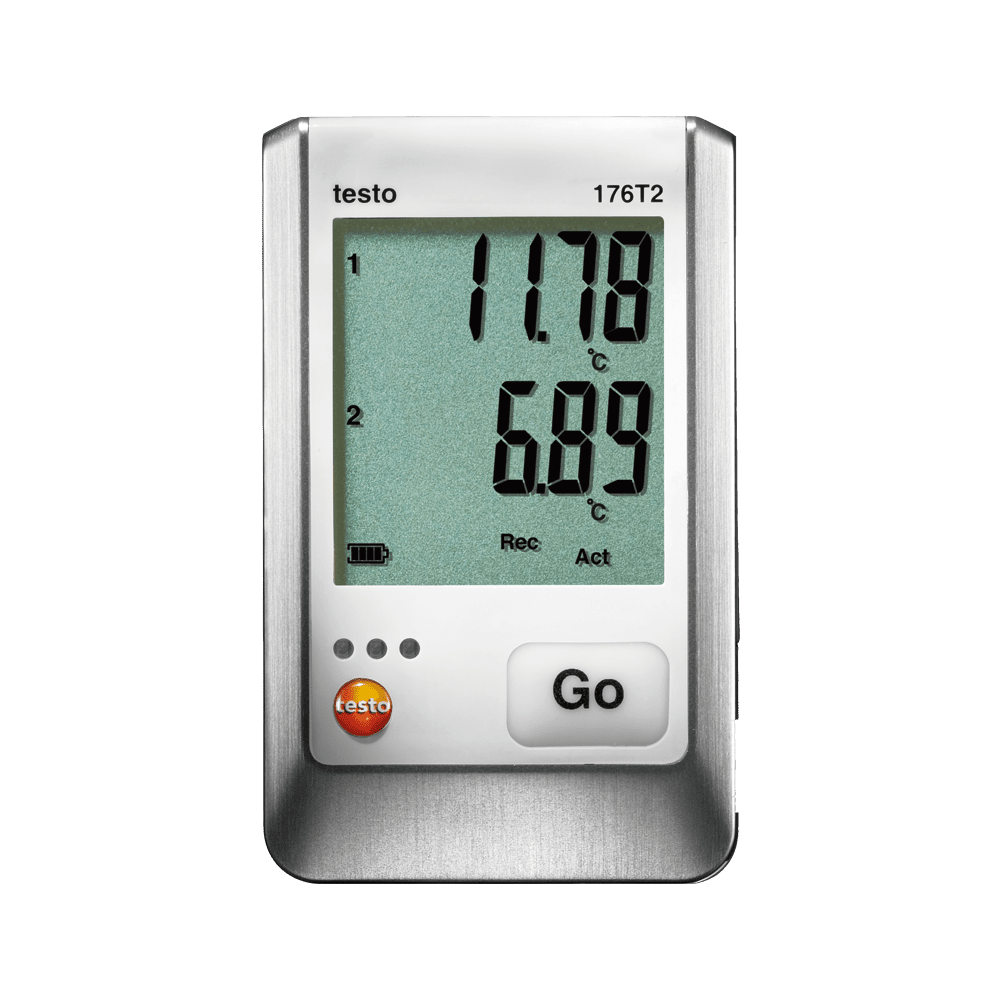

Temperature often needs to be monitored and recorded simultaneously at two sites. The testo 176 T2 is excellently suited to this job, thanks to two connections for external resistance probes (2x Pt100). The good accuracy makes the data logger universally applicable. The free ComSoft Basic software allows fast programming of the data logger and easy data analysis. With the testo 176 T2 and the versatile external resistance probes, you can, for example, perform targeted checks on the flow and return temperatures of individual radiators, in order to identify and remedy causes.

Technical data

• Channels: 2 x external
• Battery type: 1 x Lithium (TL-5903)
• Battery life: 8 years (15 min. measuring cycle, +25 °C)
• Operating temperature: -35 … +85 °C
• Storage temperature: -40 … +85 °C
• Dimensions: 103 x 63 x 33 mm
• Weight: 220 g
• Housing: Kunststoff
• EU Directive: 2014/30/EU; 2011/65/EU; DIN EN 12830
• Protection class: IP65
• Measuring rate: 1 sec – 24 h
• Memory: 1 mio. measurement values

Download data sheet »

Equipment / Items delivered

testo 176 T2, 2-channel temperature data logger with external sensor connections incl. wall holder, lock, batteries and calibration protocol

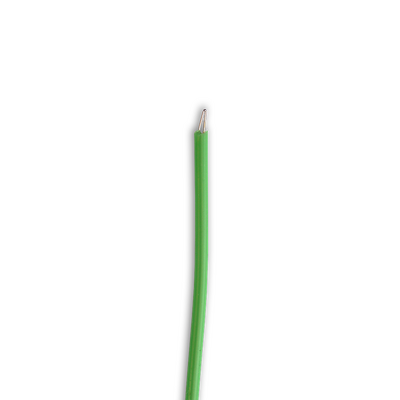

matching resistance thermometers

Discount on large quantities on request
