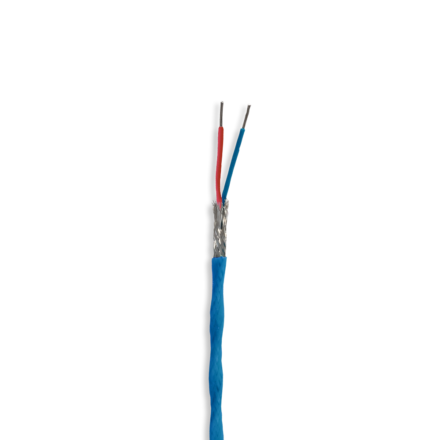

Thermowire
TEX/CUTEXTW-24F-L-DIN
Technical data:
- Thermocouple combination: Fe-CuNi Type “L”
- Limiting deviation: DIN 43710, +/-3.0 °C
- Stranded conductor: stranded, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: PFA Teflon (+260 °C)
- Conductor guide: stranded
- Braiding: Cu tin-plated
- Outer sheathing: FEP Teflon, +205 °C
- Operating temperature: -100 °C to +200 °C
- Outer dimension: approx. 3.0 mm round
- Sheathing colour: blue
- Core colour: + = red, – = blue
Packaging
- individual lengths possible
- coiled as ring up to 25m
- more then 25m on a plastic coil
- delivery as one piece, if not diffrently declared
Discount on large quantities on request.
