Length 10 m
Technical data:

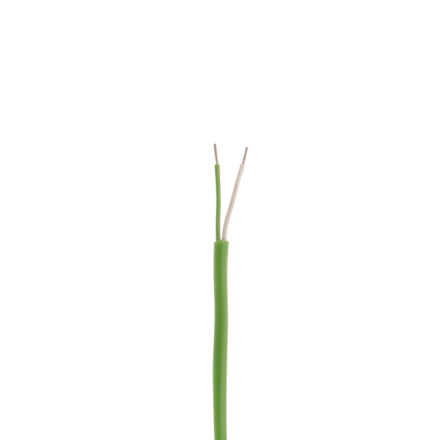

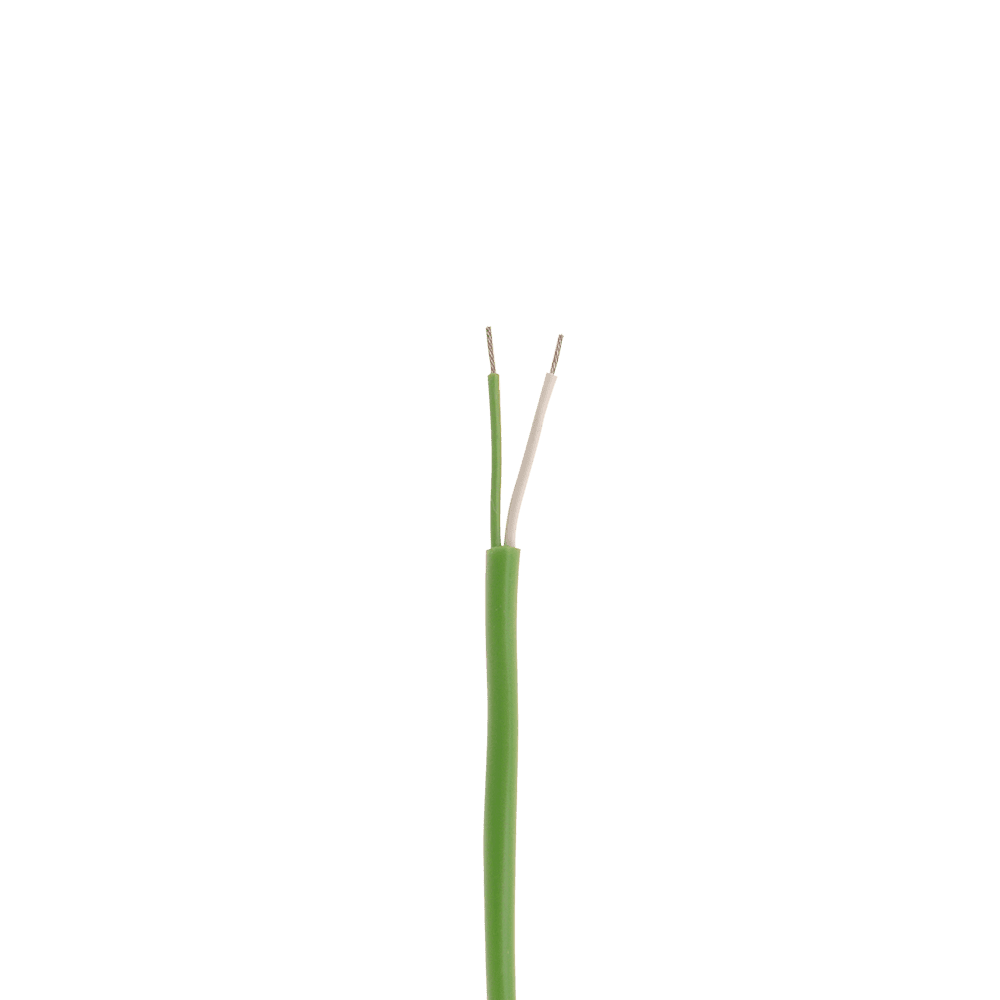

- Thermocouple combination: NiCr-Ni Type “K”
- Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
- Stranded conductor: stranded, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: silicone
- Conductor guide: stranded
- Outer sheathing: silicone
- Operating temperature: -50 °C to +180 °C
- Outer dimension: approx. 3.5 mm round
- Sheathing colour: green
- Core colour: + = green, – = white
