Sheathing | without wire | Pt1000

Resistance: Pt1000
Temperature range: -70 °C to +550 °C

Resistance *

Circuit type *

Diameter *

Element length *

Connector *

Factory calibration (optional)

Would you like a calibration test? Select a maximum of 8 calibration points between -35°C and +660°C and enter the desired temperatures in the field below. Explanation

Select quantity of calibration points

Select calibration points

Depending on the quantity selected, please specify the calibration points between -35°C and +660°C separated by commas.

» individual request

Title	Range	Discount
Rabattstaffel 1	3 - 9	3% 58,59 €
Rabattstaffel 2	10 - 24	5% 57,38 €
Rabattstaffel 3	25 +	10% 54,36 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

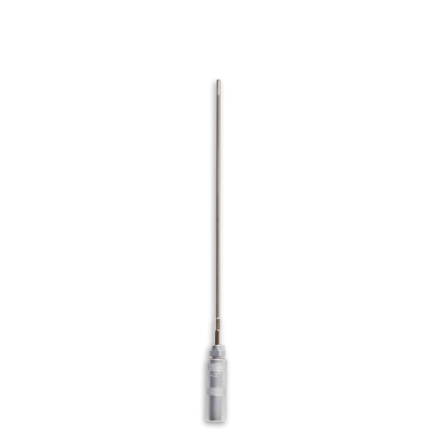

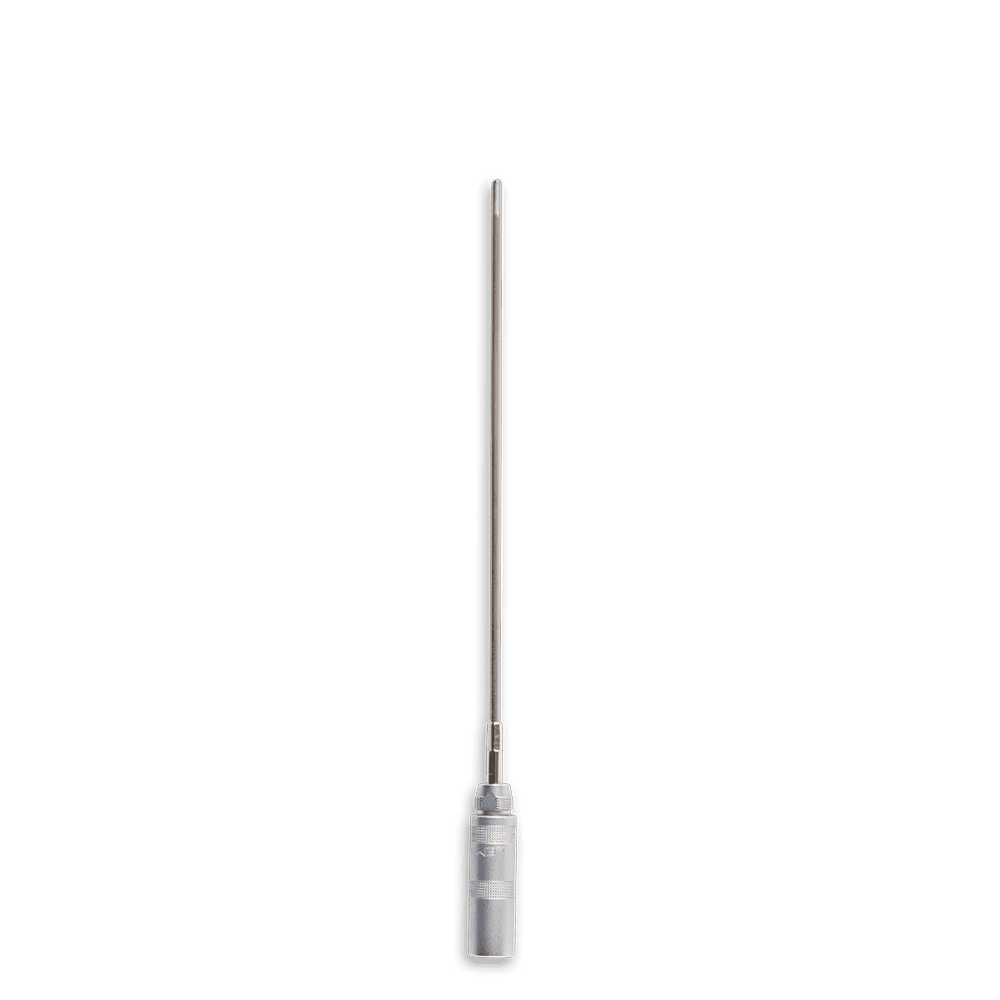

Sheathing resistance thermometer Pt1000

Resistance thermometer with bendable sheathing construction. The protection metallic sheath offers the possibility to integrate the probe into rough environments. The measuring tip can be integrated in very tight and deep installations spaces. For the attachment of the resistance thermometer a compression fitting can be used. The first 10 mm of the probe is the temperature sensitive area. The sheath must not be bend at a length of the first 30mm to avoid damage the resistance.

Technical data

Measurement range Ø 3mm: -70 °C to +550 °C
Measurement range Ø 2mm: -70 °C to +500 °C (short-time +550°C)
Electrical resistance: Pt1000
Tolerance:B / A or AA as per DIN EN 60751:2009-05
Circuit type:2, 3 or 4-wire technique
Probe Ø: 2.0 or 3.0 mm
Probe length: 50–1,000 mm
Sheathing material: 1.4541 (AISI321)
Type of connection: Selection
Measuring current Ø 3mm: recommended 0,1mA, maximum 1 mA
Measuring current Ø 2mm: 0,1mA to 0,3mA
R ISO / 250VDC: >200 MOhm

Class	range of validity Ø 3 mm[°C]	range of validity Ø 2 mm [°C]	Limiting deviation [°C]
AA	-50 bis +200	-50 bis +200	±(0,1 + 0,0017\|t\|)
A	-70 bis +300	-50 bis +300	±(0,15 + 0,002\|t\|)
B	-70 bis +550	-70 bis +500	±(0,3 + 0,005\|t\|)

Discount on large quantities on request

Additional information

Weight	0,04 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 353 Categories: Resistance thermometers, Sheathing resistance thermometer
