Plug-in resistance thermometer | Fibreglass | Pt100

Resistance: Pt100
Measurement range: -50 °C to +450 °C continuous
Wire type: Fibreglass with stainless steel braiding, Tmax: +350 °C

Resistance *

Circuit type *

Diameter *

Wire length *

Connector *

Mounting adapter *

» individual request

Title	Range	Discount
Rabattstaffel 1	3 - 9	3% 27,84 €
Rabattstaffel 2	10 - 24	5% 27,27 €
Rabattstaffel 3	25 +	10% 25,83 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

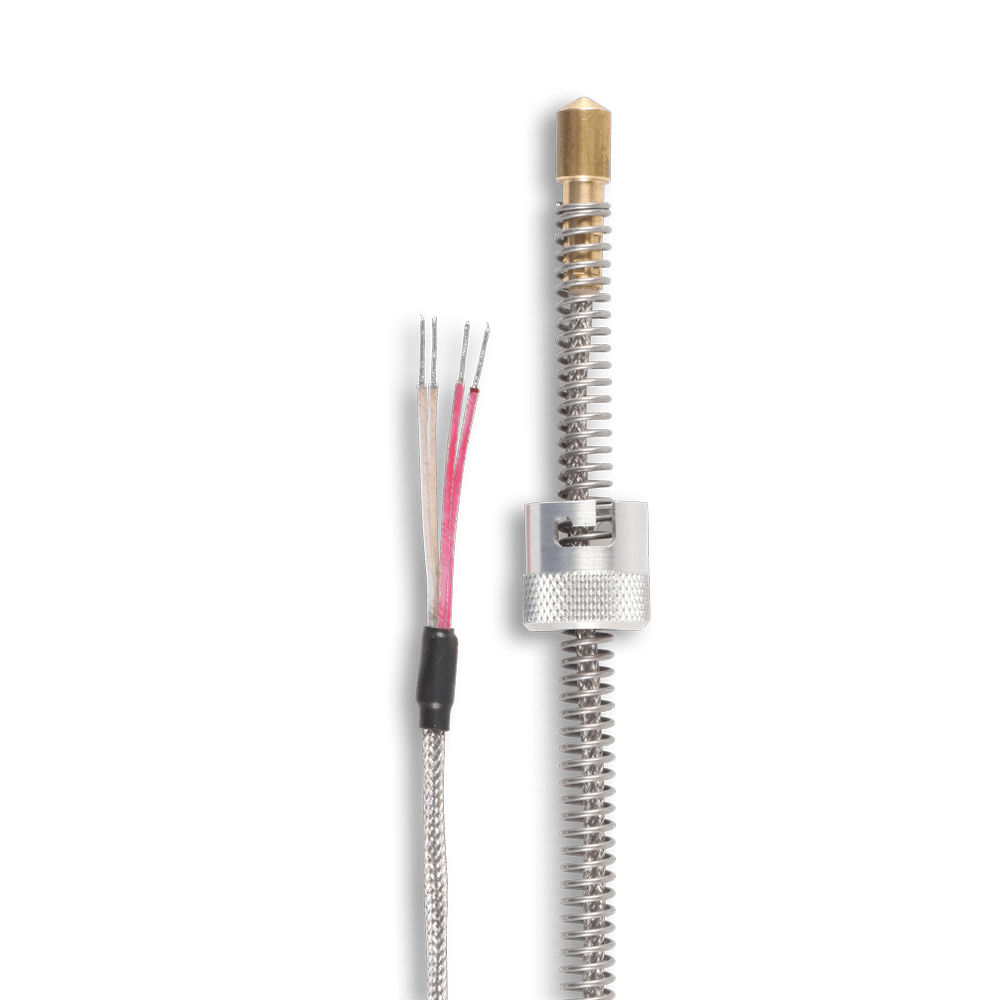

Plug-in resistance thermometer Pt100

Plug-in RTD for measurment bottom temperature of bore, to use in plants or maschines. Fast and easy assembly and disassembly of the probe with a bayonet cennection. The installation length can be adjusted by rotating the cap on the spring.

Technical data

Measurement range: -50 °C to +450 °C
Electrical resistance: Pt100
Tolerance:B / A or AA as per DIN EN 60751:2009-05
Circuit type:2, 3 or 4-wire technique
Probe housing: Brass, 118°
Probe Ø:6.0 x 10 or 8.0 x 10 mm
Bayonet cap:interior approx. Ø 12.5 mm or 14.5 mm
Positioning range:along the spring approx. 180 mm
Conductor:Fibreglass with VA braid
Conductor insulation: Fibreglass
Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Wire length: 500–5,000 mm
Connection: Selection
Measuring current: recommended 1,0mA, maximum 7 mA
R ISO / 500VDC: >200 MOhm

Recommended bore diameter 6.4mm or 8.4mm.

Class	range of validity [°C]	Limiting deviation [°C]
AA	-50 bis +200	±(0,1 + 0,0017\|t\|)
A	-70 bis +300	±(0,15 + 0,002\|t\|)
B	-70 bis +550	±(0,3 + 0,005\|t\|)

Discount on large quantities on request

Additional information

Weight	0,18 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 218 Categories: Resistance thermometers, Plug-in resistance thermometer
