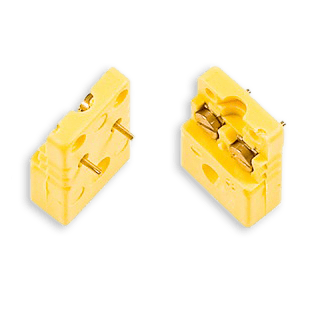

PCB Connector Miniature Flat Mounting (CMJ-XXPF)

5,00

Use:

Miniature Jack/Socket for thermocouple and RTD circuits. Designed for direct soldering onto printed circuit boards. This version is suitable for flat mounting other versions available, please see separate specification sheet.

Mechanical design:

  • Housing of fibreglass-filled plastic.
  • Contacts of original thermocouple materials and spring-loaded sockets for reliable contact.
  • Reverse polarity protection by different contact pin widths.
  • One-piece housing withstands great stresses.

Temperature load:

  • Max. 200 °C.


Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request: Type C



Colour designations:

  • All international colour designations are available:
    DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.

Material-Code:

Discount on large quantities on request

Range Discount
26 - 50 10%
51 - 100 20%
101 + 25%

plus Shipping costs
