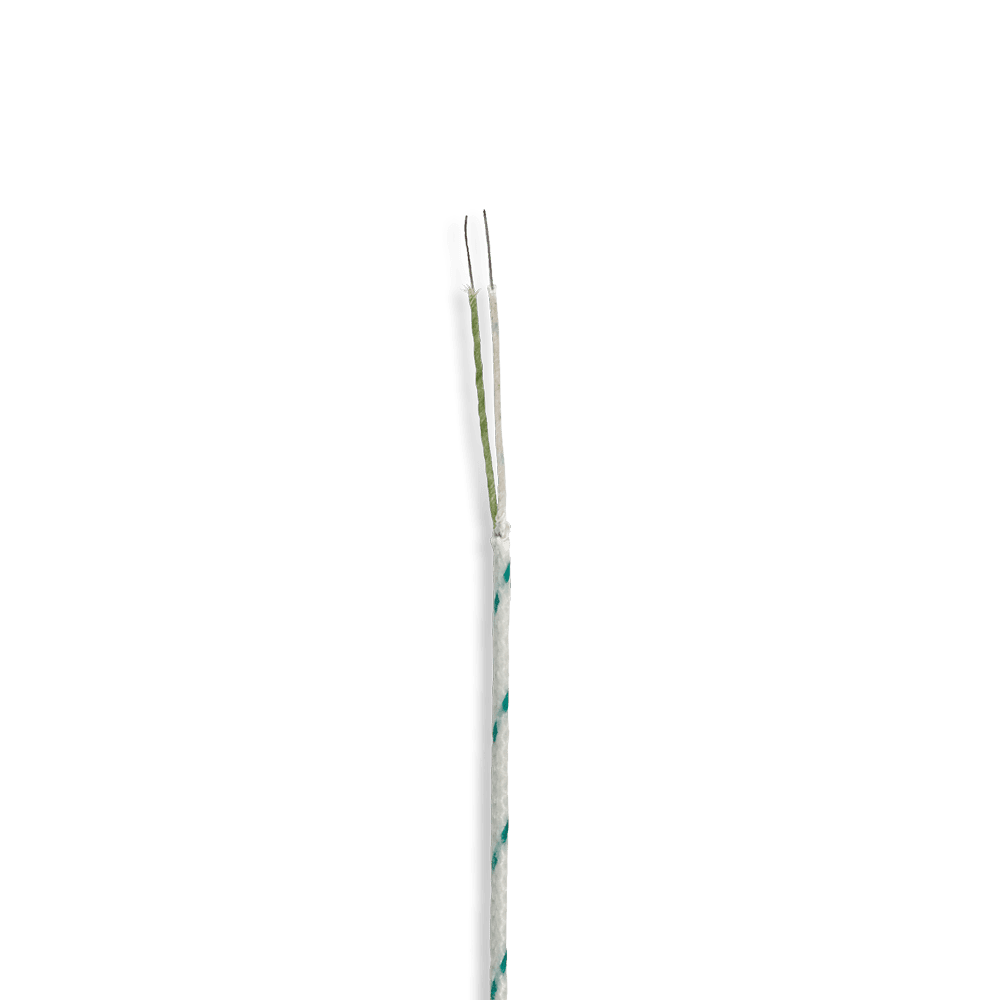

Length 10 m
Technical data:
- Thermocouple combination: NiCr-Ni Type “K”
- Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
- Conductor: Wire, 2 x 0.2 mm
- Conductor insulation: Fibreglass
- Conductor guide: parallel
- Outer sheathing: Fibreglass
- Operating temperature: up to +450 °C
- Exterior dimension: approx. 1.4 x 1.0 mm
- Sheathing colour: white with green identification thread
- Core colour: + = green, – = white
